To order a CIJ charge electrode, match the installed part reference and printhead revision, then compare electrode geometry, insulating supports, mounting points and electrical connections. A charge-related alarm alone does not establish that the electrode needs replacement.
This guide is for maintenance buyers collecting evidence for a compatibility review. It provides general procurement guidance, not a model-specific repair procedure or a promise that a replacement will resolve an alarm.
Identify the component before requesting a quote

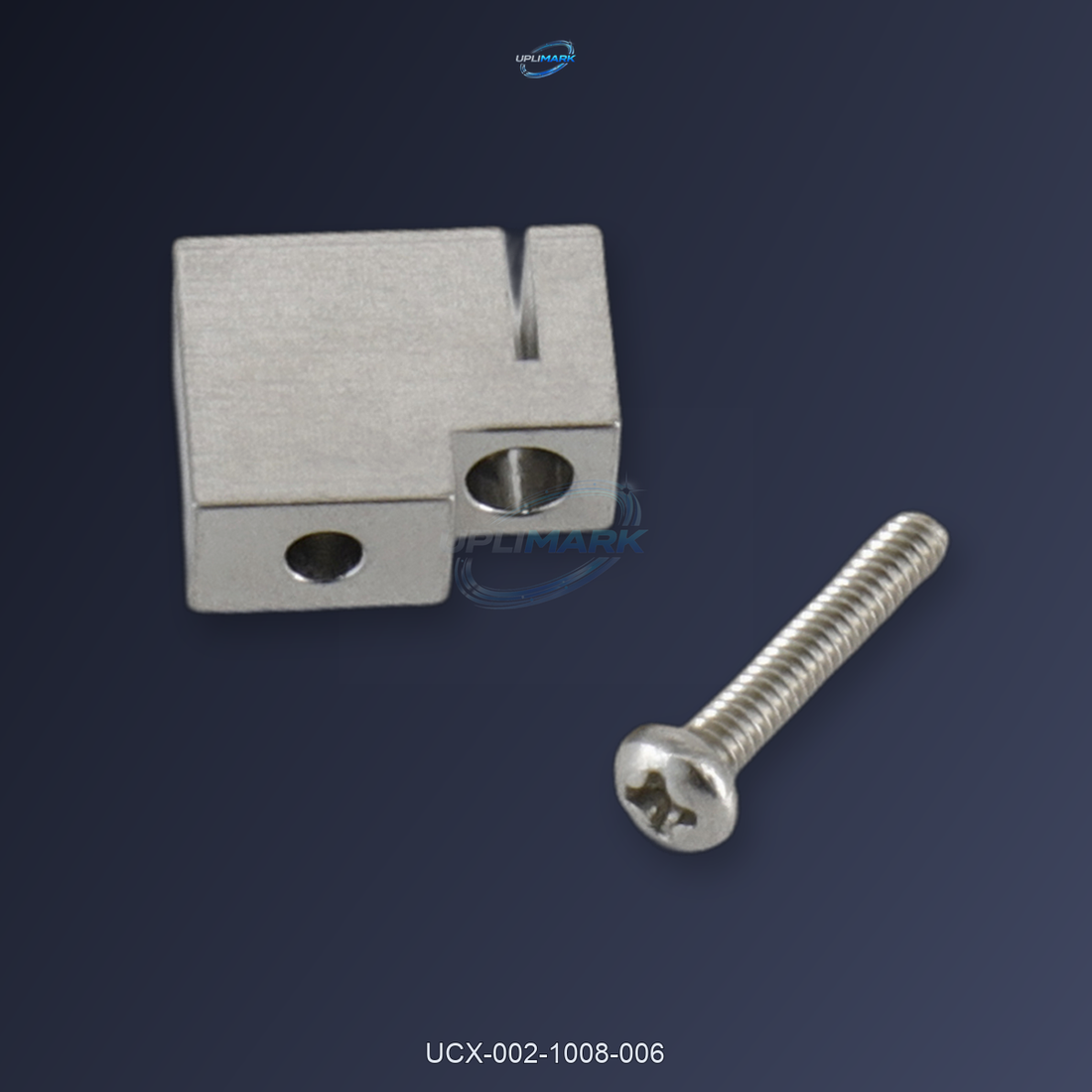

In continuous inkjet (CIJ) printing, the charging electrode is associated with applying charge to droplets. It is a different component from the downstream deflection plates. Catalog terms such as charge electrode, charge tunnel and electrode assembly can describe different supply scopes; identify the installed item rather than relying on the name alone.
Record the equipment model, printhead version, complete installed reference and any revision marks. If a label is unreadable, photograph the assembly in context and list the missing information. Do not turn an uncertain identification into a confirmed part number.
What must match besides the part number?
| Check | Evidence to provide | Why it matters |
|---|---|---|
| Electrode opening and orientation | Clear front and side photographs, with approved drawing dimensions if available | A similar outline does not prove identical geometry. |
| Insulating support | Support shape, locating features and visible condition | The complete mounting arrangement must match the assembly. |
| Mounting interface | Hole pattern, brackets and retained hardware | Confirm what belongs to the electrode and what stays on the printhead. |
| Electrical connection | Lead length, connector face and keying | Matching wire colours or connector appearance alone is insufficient. |
Keep diagnosis separate from procurement
Record the exact alarm, when it occurs, recent service activity and any documented findings from a qualified technician. Do not describe an electrode as faulty solely because the screen mentions charging. The applicable troubleshooting procedure should establish the reason for replacement.
Before access or removal, follow the equipment's shutdown and energy-isolation procedure. Do not bend the electrode, alter its opening, probe a live printhead or change alignment using this buying guide. Cleaning agents, drying requirements and adjustments belong to the applicable service documentation.
Ask what is included in the quoted assembly
Confirm whether the quote covers the electrode alone, its insulating carrier, cable, connector, screws or a larger printhead subassembly. Mark each item as included, retained from the machine or separately required. A lower-priced bare component is not the same scope as a complete assembly.
At receipt, compare the approved reference, geometry and supplied items before installation. Keep the packaging label and photographs with the maintenance record. Quarantine an unexplained mismatch and request clarification rather than modifying the component to make it fit.
Frequently asked questions
Can a matching connector prove compatibility?
No. Printhead revision, electrode geometry, insulation and mounting also need confirmation. A connector match is only one check.
Should I measure the opening on an installed electrode?
Use documented dimensions when available. Do not insert measuring tools into a live or fragile assembly; ask the service provider how to collect missing dimensions safely.
What if the supplied part has a different revision?
Request documented confirmation that the new revision replaces the installed one for your printhead. Record that confirmation with the order.
Request a compatibility review with the installed reference, printhead version, front and side photos, connector photo and required quantity. Use the compatibility and ordering guide to organize the request, or compare the separate deflector plate buying guide if that is the component being replaced.
