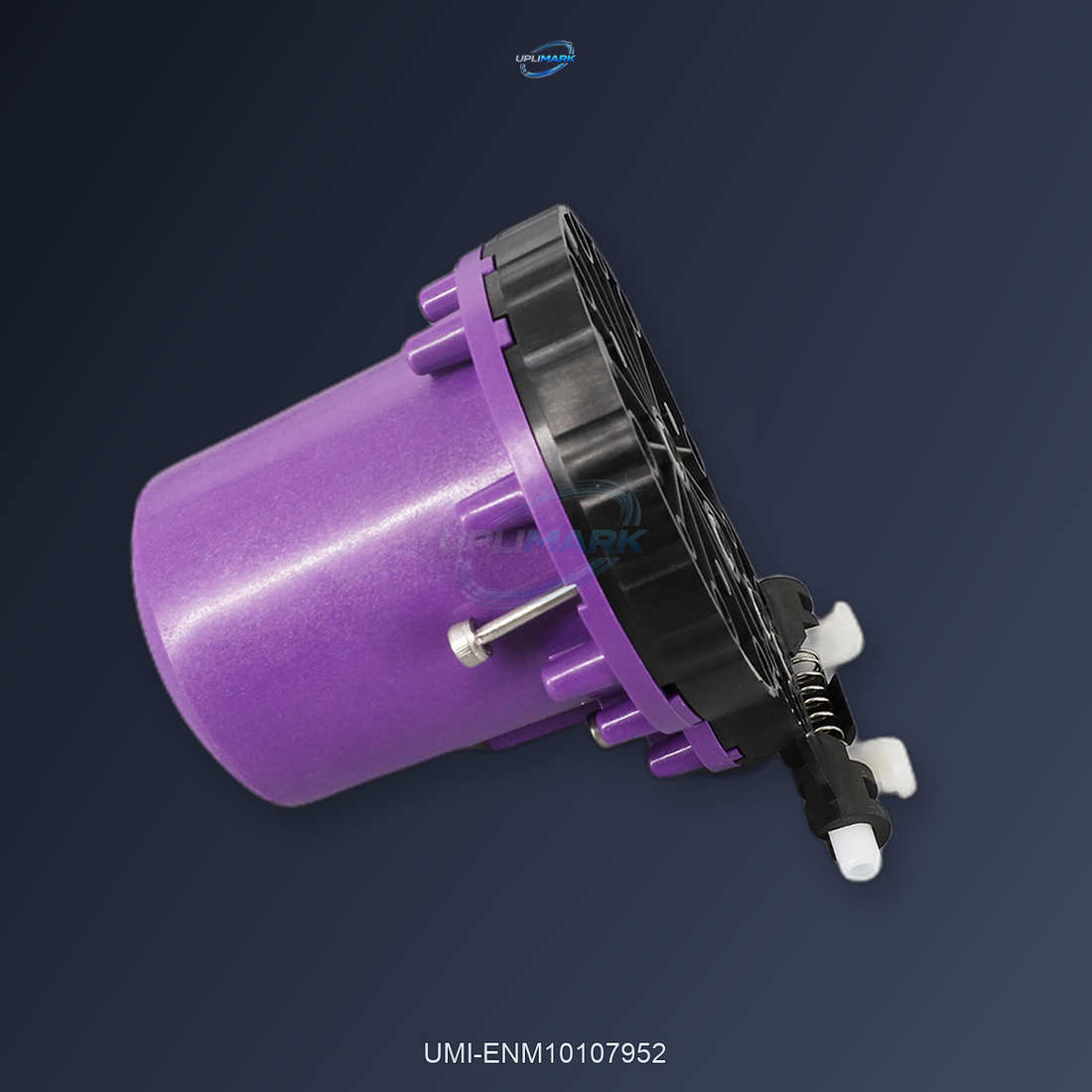

Before ordering a CIJ ink filter, verify the installed reference, filter position, connection style, seal arrangement, filtration specification and supplied scope. Filters that look similar can differ in dimensions, port configuration and intended circuit location.
What an ink filter does
An ink filter removes contaminants from a specified fluid path. The correct selection depends on the installed assembly and service position, not on appearance alone. This is general procurement guidance; follow the applicable equipment manual and safety procedure before service work.
Six checks before ordering
1. Record the installed reference
Capture the complete part reference, revision marks and label details before the item is removed. Keep the package label with the maintenance record.
2. Identify the filter position
Confirm whether the filter is installed in an ink, makeup, return or another fluid path. A filter intended for one position should not be substituted into another without an approved compatibility check.
3. Compare the connections
Check port orientation, hose or tube interfaces, thread or fitting style, and any locating features. Compare both ends of the installed part with the proposed replacement.
4. Verify the seal arrangement
Note whether seals are integrated, supplied separately or retained on the mating assembly. Confirm their count, shape and condition before ordering.
5. Confirm the filtration specification
Use the installed reference and applicable documentation to confirm the required specification. Do not infer it from external size or colour.
6. Confirm supplied scope and quantity
Clarify whether the offer includes only the filter or any fittings, seals, clips or associated hardware.
Information to include in a compatibility request
| Provide | Why it matters |
|---|---|
| Equipment model and installed reference | Identifies the relevant fluid-system version. |
| Photos of both ends and the label | Shows connections, geometry and markings. |
| Filter position and associated connections | Helps distinguish similar components used in different circuits. |
| Required quantity and delivery country | Clarifies the requested supply scope. |
Receiving check before service work
- Compare the reference, port arrangement, dimensions and supplied seals with the approved item.
- Check for shipping damage, open packaging or contamination before fitting.
- Keep receiving photos and package details with the maintenance record.
For a broader request checklist, see our CIJ spare-part compatibility guide and the compatibility and ordering guide.
Frequently asked questions
Can I choose an ink filter by appearance?
No. Use the installed reference, circuit position, connection style, seal arrangement and applicable specification to check suitability.
Can filters with matching ports be interchangeable?
Not necessarily. The intended filter position and required specification must also match.
What should I send for a compatibility check?
Send the equipment model, installed reference, photos of both ends and the label, the filter position, quantity and delivery country.
