Direct answer: Before ordering a replacement CIJ ink pump, verify the exact printer model, the complete reference on the installed component, whether the required item is a pump head, motor or complete assembly, and the electrical and fluid connections. A similar appearance is not enough to confirm interchangeability.
Why CIJ pump identification needs careful checking
A CIJ printer fluid system can contain components that look similar but differ in rotor version, motor configuration, mounting points, connector type, tubing arrangement or intended ink system. Ordering from photographs alone can result in a part that cannot be installed or does not match the existing system.
Stop the equipment and follow the printer manufacturer's safety and service instructions before inspecting any pressurized, powered or ink-wetted component. If the machine condition is uncertain, use a qualified technician.
Information to record before requesting a pump
| Check | What to record | Why it matters |
|---|---|---|
| Printer identity | Manufacturer, full model, series and serial-number range if available | Similar families can use different fluid-system components. |
| Installed reference | Every readable part number, revision and label | The complete reference is stronger evidence than appearance. |
| Required scope | Pump head, motor, coupling, cable or complete assembly | These are not interchangeable descriptions of the same item. |
| Electrical interface | Connector shape, pin count, cable length and motor label | A mechanical match does not prove an electrical match. |
| Fluid interface | Port count, tubing positions, fitting type and tube size | Connection layout must agree with the installed system. |
| Mechanical details | Mounting holes, bracket, shaft or rotor form and overall dimensions | Small dimensional differences can prevent installation. |
| Operating context | Ink type, reported alarm and observed symptom | This helps distinguish a pump request from a wider fluid-system problem. |
Pump head, motor or complete pump assembly?
Pump head
A pump head is the fluid-handling portion. Confirm the head reference, port arrangement, rotor or drive interface and any seals or fittings included with the supplied part.
Motor
A motor request needs its own label and electrical information. Record voltage markings, connector and mounting details without assuming that a motor used beside a similar pump is equivalent.
Complete assembly
A complete assembly can include a head, motor, bracket, coupling, cable or other attached pieces. Compare the supplier's included-parts list against what is actually required for the repair.
Safe checks before concluding that the pump is faulty
- Review the printer's alarm history and service documentation.
- Check visible tubing for kinks, loose connections or obvious leakage.
- Confirm that relevant filters and fluid levels are within the printer manufacturer's maintenance requirements.
- Inspect connectors and cables for visible damage or poor seating.
- Do not bypass guards, interlocks or pressure-safety procedures to test a component.
Unstable pressure, poor circulation or startup problems can involve filters, valves, tubing, sensors, cables or fluid condition as well as the pump. A symptom alone does not identify the failed part.
Photographs that improve a compatibility review
- One overall photograph showing the component in its installed position
- One clear image of every label and reference
- Connector face and pin arrangement
- Fluid ports, fittings and tube routing
- Mounting bracket and fastener positions
- A ruler or caliper view for critical dimensions, without obscuring the part
Use the compatibility and ordering guide to prepare the machine and part information. When the reference is incomplete, contact CIJ Printer Parts before ordering.
Example of a real pump component in the catalog

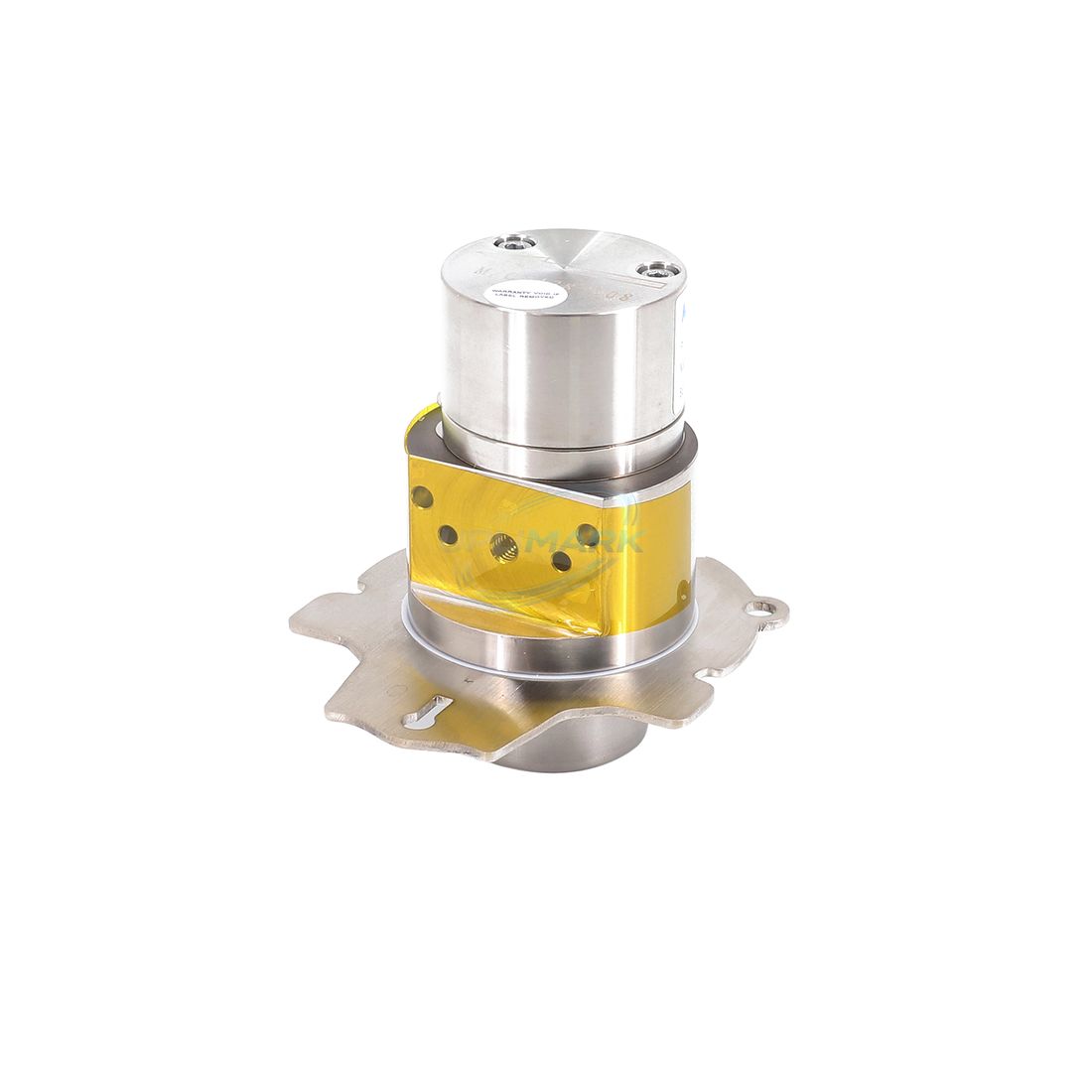

The article image is taken from an actual Shopify product listing for a compatible black-ink pump for a specified Markem-Imaje 9750 application. It is an identification example only; its appearance does not establish compatibility with another printer. You can also browse the Markem-Imaje compatible spare-parts collection.
Receiving checks before installation
- Compare the delivered reference and included components with the order confirmation.
- Inspect packaging, ports, connectors and mounting surfaces for transit damage.
- Check dimensions and interfaces against the removed component before installation.
- Keep protective caps in place until the approved installation procedure requires removal.
- Record photographs and report discrepancies before modifying or installing the part.
Frequently asked questions
Can I order a CIJ pump from a photograph?
A photograph is useful, but it should be supported by the printer model, installed reference, connector, ports and dimensions.
Does the same printer series always use one pump?
Not necessarily. Production revisions, ink configurations and service assemblies can differ. Confirm the installed component rather than relying only on the series name.
Does low or unstable pressure prove the pump has failed?
No. Filters, valves, tubing, sensors, cables and fluid condition can contribute to similar symptoms. Follow the approved diagnostic procedure for the exact printer.
Are the listed parts genuine OEM parts?
Unless a listing explicitly states otherwise, products are presented as compatible or replacement parts. Manufacturer names identify intended compatibility and do not imply OEM authorization.
For more maintenance and procurement guidance, visit the CIJ Printer Parts Guides.
