Before ordering a replacement keyboard for a continuous inkjet (CIJ) printer, establish whether you need a printed overlay, an electrical membrane keyboard or a complete operator-panel assembly. Similar key legends and outside dimensions do not establish interchangeability. Match the installed reference, panel revision, display opening, flexible tails and electrical contact pattern, and obtain a written list of included components.
This is general procurement guidance, not a diagnosis or a machine-specific installation procedure. Use the applicable equipment documentation and a qualified service technician for internal inspection and replacement.
First define what the quotation must include
Descriptions such as “keyboard,” “mask” and “membrane” are not a reliable bill of materials. A printed face layer does not, by itself, establish that electrical switches, contacts, a display or a controller are included. Ask the supplier to identify the construction and show the actual supplied item before approving the order.
| Quoted description | Question to resolve before ordering |
|---|---|
| Overlay or mask | Is this only the printed face layer? Are adhesive, windows or other layers included? |
| Membrane keyboard | Which switch/contact layers and flexible tails are supplied? What is the verified connection specification? |
| Operator-panel assembly | Does the quotation include the display, keyboard, housing and electronics, or only selected components? |
Compare the front face and the connection separately
- Identify the installed part. Record the printer model, panel/controller revision and complete part reference, including suffixes. Keep the equipment reference separate from the supplier's catalogue number.
- Check the face layout. Compare the outline, display opening, key positions, language and mounting details. Request dimensions with units; do not measure a scaled web photograph.
- Check the flexible tails. Have a qualified technician document the number, exit positions, lengths, widths, contact arrangement and contact-facing orientation. A matching tail width does not confirm matching electrical connections.
- Confirm the receiving connector. Match the documented connector and controller revision. Do not trim a tail, force a connection or assume that equal contact counts prove compatibility.
- Resolve supply scope. Obtain written confirmation of the exact item, included layers/components and original-versus-compatible replacement status.
Photographs of hidden connections should be taken only during authorized service under the machine's shutdown, isolation and handling instructions. Do not open an energized cabinet merely to prepare a purchase inquiry.
A catalogue example: UMI-ENM23970

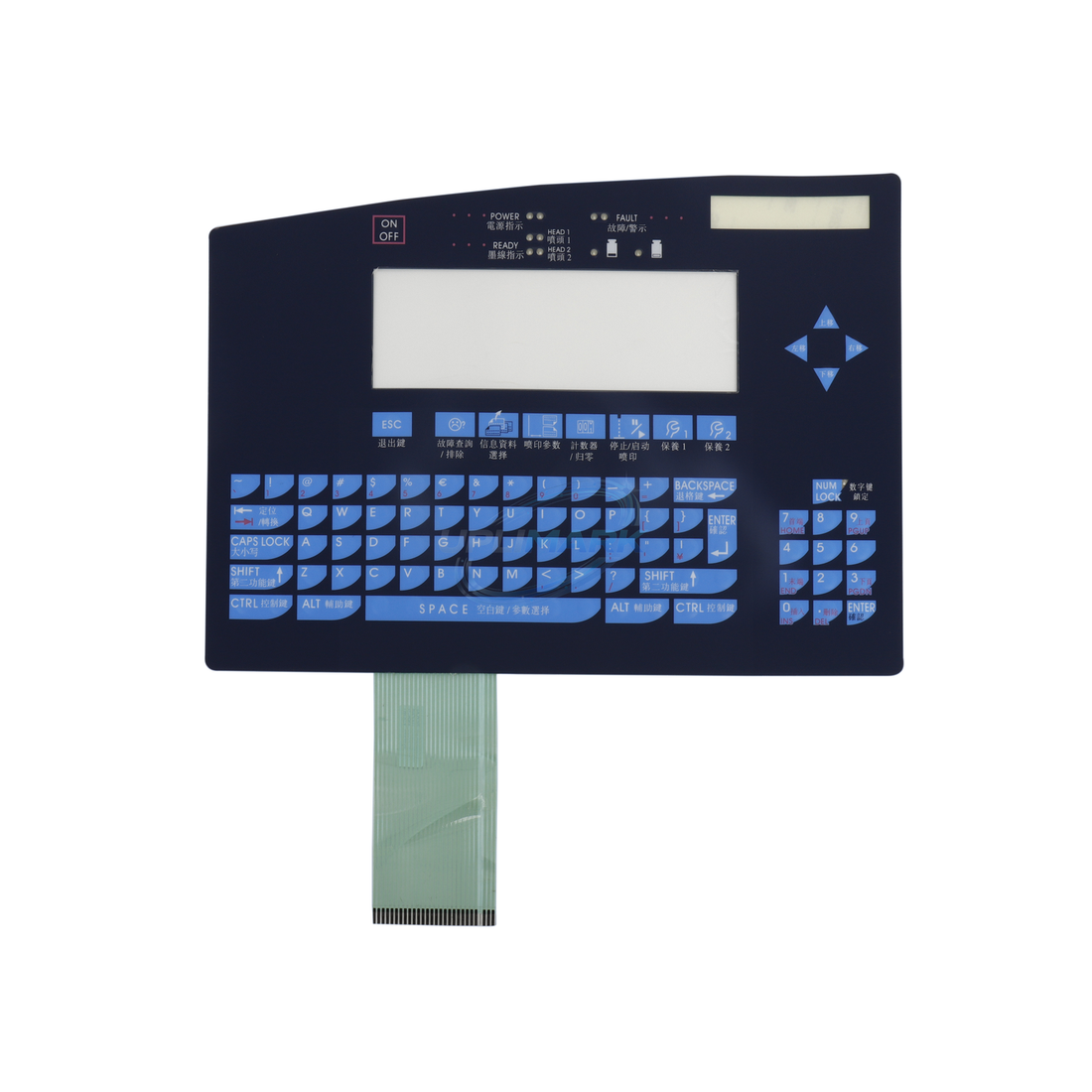

The UPLIMARK UMI-ENM23970 Chinese-language keyboard membrane listing identifies reference ENM23970 and describes a display opening, printed keys and flexible tails. The listing asks buyers to verify panel layout, tail positions and lengths, contact pattern and controller revision. Those are matching requirements, not evidence that this part suits every CIJ operator panel.
Product information and photograph checked against the store listing on October 9, 2026. The listing describes a compatible replacement. Confirm exact supply condition, included items and fitment in the quotation; this guide does not establish stock, delivery time or installation test results.
An unresponsive key is a symptom, not a part number
Record which controls are affected, whether the display is operating and when the symptom occurs. Pass that record to qualified service personnel. A purchase decision should follow their assessment of the panel and its connections, rather than an assumption that replacing the printed face will correct an electrical problem. Do not bypass controls or try unverified electrical connections as a purchasing test.
Send one complete identification request
Use the compatibility and ordering guide, then request a keyboard fitment review with:
- Printer model, panel/controller revision and installed reference.
- Clear front-face and reference-label photographs; safely obtained rear/tail photographs where available.
- Verified dimensions, connection details and required language.
- Whether you need an overlay, electrical membrane or complete assembly.
- Required quantity and delivery destination.
UPLIMARK is an independent supplier. A catalogue reference or visual resemblance is not an original-equipment endorsement or a universal compatibility statement. On receipt, compare the supplied item and documents with the approved quotation before installation or removing any protective backing.
Frequently asked questions
Can I choose a different language if the keyboard looks identical?
Not from appearance alone. Confirm key functions, controller revision and the approved configuration as well as the printed language. Do not assume that changing the face changes the software language or key mapping.
Does a display opening mean a display is included?
No. An opening or window describes the face geometry, not the supply scope. Ask for an explicit included-components list.
What if the original reference is unreadable?
Send the equipment and panel identification, clear photographs and available dimensions for review. Mark the missing reference as unknown; do not substitute a guessed number. Final fitment remains to be confirmed.
