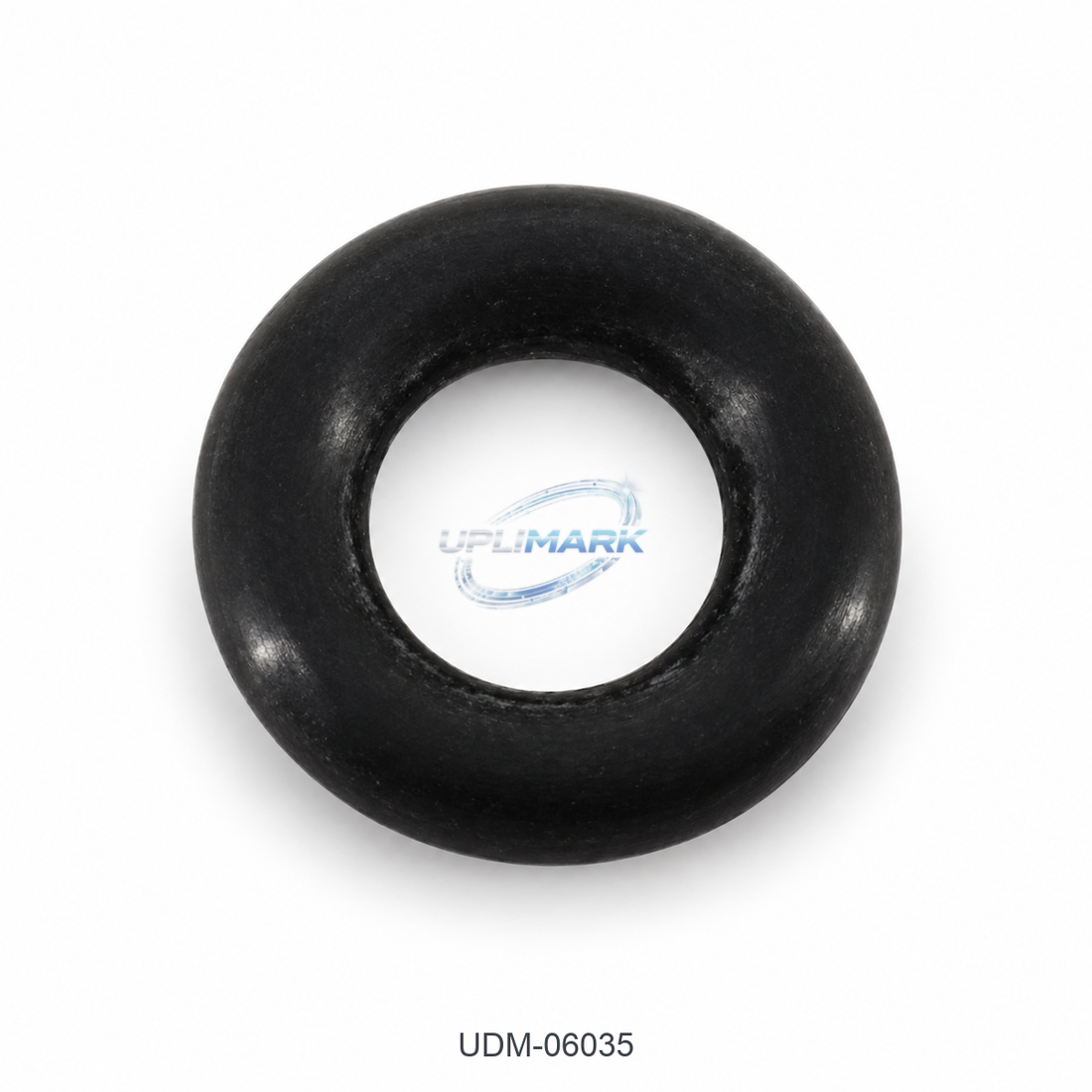

A replacement O-ring for a CIJ fluid system must match the approved size, material compound, hardness and sealing application. Matching the diameter or colour alone does not confirm suitability for the ink, make-up fluid, cleaner or operating conditions.
This is a purchasing guide for continuous inkjet (CIJ) printer maintenance teams. It does not specify a universal seal material or provide a model-specific repair procedure.
Identify the sealing location first
Record the printer revision, assembly reference and exact position of the seal. A tank connection, valve body and filter housing should not be treated as the same application simply because their rings look alike. Photograph the assembly and its label before requesting a replacement.
If a leak prompted the order, keep diagnosis separate from identification. Record where fluid was observed and any recent maintenance. A qualified technician should establish whether the seal, its seating surfaces or another component needs attention. Follow the applicable shutdown, isolation and fluid-handling procedure before access.
Build a complete seal specification
| Check | Useful evidence | Do not assume |
|---|---|---|
| Inside diameter and cross-section | Approved reference or drawing, including units and tolerances | A nearby nominal size is interchangeable |
| Material compound and hardness | Equipment specification or documented supplier confirmation | Black rings all use the same material |
| Fluids in contact | Ink, make-up and cleaner references used at this location | Compatibility with one fluid covers the whole process |
| Application and conditions | Seal position and documented service requirements | Every ring in the cabinet has identical duties |
Do not use an old seal as the only dimensional reference
A removed seal may be distorted, swollen or permanently flattened. Its measured dimensions can therefore be misleading. Use the original reference or approved dimensions when available; label measurements from an old seal as supporting observations, not a confirmed replacement specification.
Do not stretch a candidate ring into place to prove it fits. If the part reference is missing, request identification of the sealing application before accepting a substitute. This guide provides no groove dimensions, compression percentage or installation torque.
Confirm the compound, not just a polymer name
Ask for documented suitability for the specified fluids and service conditions. General descriptions such as rubber or solvent-resistant do not resolve a compatibility question. A polymer family name alone may also leave the compound and hardness unspecified.
Include cleaners as well as operating fluids in the review. Do not select a lubricant or cleaning chemical from appearance or habit; use the applicable equipment instructions. Where supplier evidence is incomplete, leave the choice unapproved rather than treating an unanswered question as acceptance.
What should the quotation and receiving record show?
State the seal reference, approved specification, quantity and whether the order is for individual rings or a defined kit. Confirm which positions a kit covers. More rings in a packet do not establish that the required location is included.
At receipt, retain the packaging identification and compare it with the approved order. Keep different references separated and protect seals according to the supplier's storage instructions. If the label, condition or specification is uncertain, hold the item for clarification before installation.
Frequently asked questions
Can a photo identify seal material?
No. It can show general shape and visible condition, but not reliably establish compound, hardness or chemical suitability.
Can I substitute the closest ring in a general-purpose kit?
Only after the required specification and application have been confirmed. Visual similarity and a trial fit are not approval criteria.
Will a new O-ring necessarily stop the leak?
No. Replacement selection and fault diagnosis are different tasks. The seating surfaces, assembly and approved service procedure also need consideration.
Request a seal compatibility review with the equipment revision, sealing location, installed reference, photographs and fluid references. The compatibility and ordering guide explains how to organize an identification request.
