Before ordering a CIJ vacuum switch, verify the exact installed reference, printer or fluid-system revision, sensing interface, mounting arrangement, connector or lead details and supplied hardware. Similar switch assemblies can differ in fit, connection and intended fluid-system position.
What a CIJ vacuum switch does
A vacuum switch is associated with monitoring the fluid-system vacuum condition in a CIJ printer. Its physical interface and electrical connection must match the installed system configuration. This is general procurement guidance, not an installation procedure.
Six checks before ordering
1. Record the installed reference

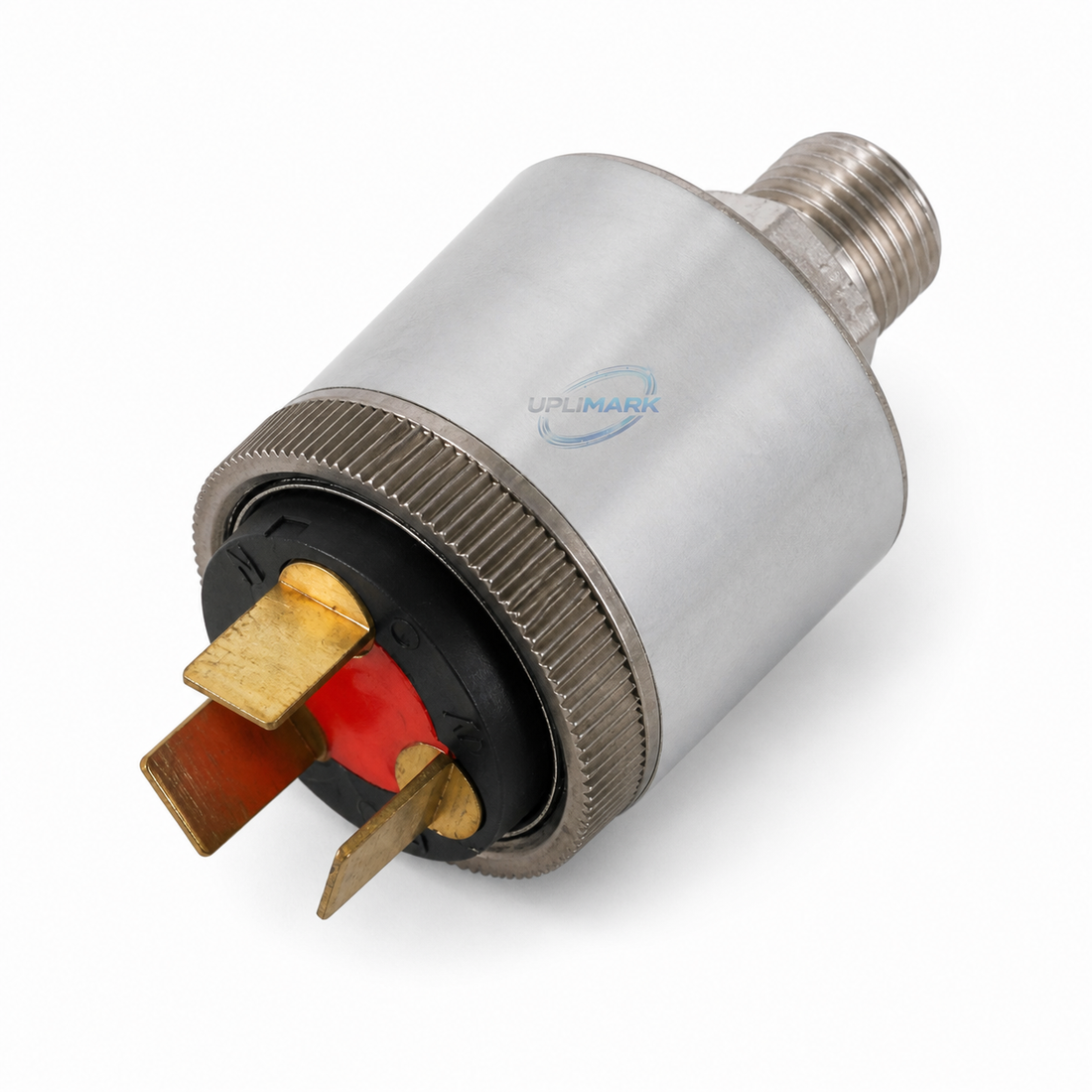

Capture every part number, revision mark and visible identifier. Take clear photos of the installed switch, connector and mounting area before removal.
2. Identify the printer and system revision
Provide the complete printer model and the relevant fluid-system or cabinet revision. Do not assume a switch used on one version fits another.
3. Compare the sensing interface
Check the port, fitting, hose or manifold interface and the switch body orientation. A catalogue image alone cannot confirm these details.
4. Verify mounting and clearance
Compare fixing points, brackets, locating features and clearance around nearby fluid components.
5. Check the electrical interface
Confirm connector style, pin arrangement, lead length, routing and retaining pieces. Include close photos in the enquiry.
6. Confirm supply scope
Establish whether the offer includes only the switch or also seals, fittings, a lead, connector or mounting hardware.
Information to include in a compatibility request
| Provide | Why it matters |
|---|---|
| Printer model and system revision | Helps identify the applicable assembly layout. |
| Installed reference and markings | Identifies the version more reliably than appearance alone. |
| Photos of the fitted switch and connector | Shows the sensing, mounting and electrical interfaces. |
| Required quantity and supply scope | Clarifies whether associated parts are required. |
Receiving check before service work
- Compare the received reference, switch body and connection details with the approved item.
- Check connector style, port or fitting interface and supplied parts before starting service work.
- Keep packaging labels and receiving photos with the maintenance record.
For a broader checklist, see our CIJ spare-part compatibility guide and the compatibility and ordering guide.
Frequently asked questions
Can I select a vacuum switch from a photo?
A photo is helpful, but compatibility should also be checked against the installed reference, printer model, system revision and connector details.
Does a matching connector prove the switch will fit?
No. The sensing interface, mounting arrangement and supplied scope also need to match the installed assembly.
What should I send for a compatibility check?
Send the printer model, system revision, installed reference, photos of the fitted switch and connector, quantity and delivery country.
