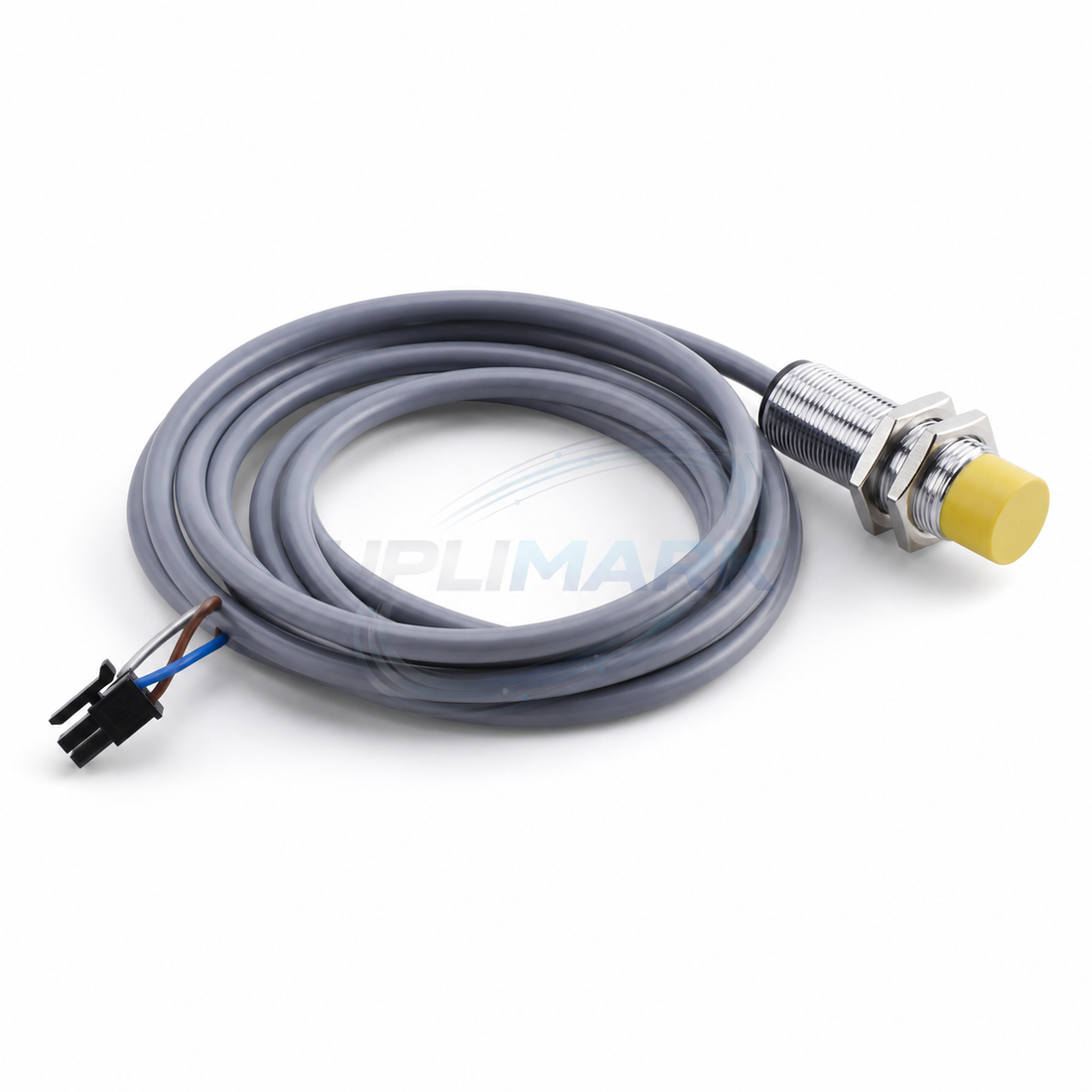

Before ordering a CIJ viscometer sensor, match the printer and fluid-system revision, the installed part reference, sensor dimensions and thread, cable and three-wire connector, and the required electrical specification. A similar-looking sensor is not enough to establish compatibility.
Why the viscometer sensor matters
In a continuous-inkjet (CIJ) fluid system, viscosity-control components work alongside the printer’s specified ink and make-up process. If a sensor or its connection is suspected, record the warning or operating symptom first and follow the equipment manual and your site’s service procedures. Do not assume that every ink-quality or fluid-system message proves a sensor failure.
Five checks before you request a replacement
- Record the complete reference. Photograph every marking, suffix and revision on the installed part, its cable and any mating connector.
- Identify the exact equipment. Provide the printer manufacturer, full model and fluid-system revision. A family name alone may cover several versions.
- Compare the mechanical interface. Check the sensor body diameter, thread or mounting method, sealing surface, installed orientation and available clearance against a drawing or approved sample.
- Match the cable and connector. Confirm wire count, connector shape, pin arrangement, keying, cable route and length. Do not force a connector that only appears similar.
- Verify the required specification. Use the machine documentation or an approved technical source to confirm the electrical and sensing requirements for that position.
What to send for a compatibility review
| Information | Why it helps |
|---|---|
| Printer model and fluid-system revision | Separates closely related configurations. |
| Installed part reference and clear label photos | Preserves suffixes and revision details that photos of the shape may miss. |
| Photos of the whole assembly and connector | Lets the reviewer compare cable exit, keying and mounting arrangement. |
| Key dimensions and mounting details | Helps check physical fit before purchase. |
| Quantity and delivery country | Supports an accurate quote and supply discussion. |
Inspect the related wiring before replacing the sensor
Before changing a part, inspect the accessible connector and cable for contamination, moisture, strain, damaged insulation or a loose latch, following safe isolation procedures. Also check that the correct ink and service conditions are being used. These observations are useful troubleshooting evidence; they do not replace a qualified diagnostic process or the printer manufacturer’s instructions.
A practical receiving check
When a replacement arrives, compare it with the approved reference before installation: label, body shape, mounting interface, connector keying, cable exit and supplied accessories. Keep the packaging and take photos before fitting. If any detail differs from the approved information, pause the installation and request clarification.
Frequently asked questions
Can I identify a CIJ viscometer sensor from a photo alone?
No. A photo can support a review, but it may not show the full reference, revision, electrical specification, dimensions or connector pinout.
Should I replace the sensor whenever there is a fluid-system alarm?
Not automatically. Capture the message and operating context, then use the equipment documentation and a qualified service process to determine the cause.
What is the fastest way to request a match?
Send the exact printer model, complete installed-part reference, clear photographs of the sensor and connector, relevant dimensions, required quantity and delivery country.
Need a second check before ordering?
Review the CIJ spare-part compatibility and ordering guide, then contact the team with the information above. For related maintenance preparation, see the CIJ spare-part compatibility checklist.
Compatibility information is provided to support identification and procurement. It does not replace the printer manual, approved drawings, safety requirements or qualified technical review.
