Direct answer: The store lists UPLIMARK UL-EA1496 as a compatible replacement 22 MΩ, 3 W EHT resistor for Citronix CI580 and CI1000 CIJ printers. Before ordering, confirm the installed reference and the resistor’s electrical rating, connections, mounting and insulation against your exact printer revision. Do not select a high-voltage component by appearance alone.
What the listing identifies
UL-EA1496 is the catalog reference shown for a 22 MΩ, 3 W EHT resistor. The product page lists CI580 and CI1000 and describes the item as a compatible replacement unless explicitly stated otherwise. That listing is a starting point for identification—not proof that every electrical revision or installed circuit uses the same component.

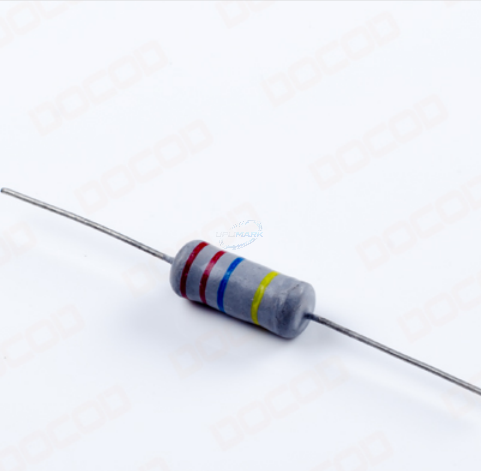

Review the UL-EA1496 product listing and photo alongside the installed part and the printer’s service documentation. The image can help identify the general component form, but it cannot establish tolerance, voltage rating, lead spacing or suitability for your specific circuit.
Checks to complete before ordering
- Record the printer details. Note the complete model, revision and any relevant assembly or board identifier from the equipment label and service documentation.
- Match the reference. Compare the marking on the installed resistor or the parts list reference with UL-EA1496. If the original marking is unreadable, send a clear photograph rather than inferring the reference from the machine family.
- Confirm the electrical specification. The listing identifies 22 MΩ and 3 W. Verify that both values—and any required tolerance, voltage, pulse or temperature specification—match the service documentation. Those additional limits are not stated on this listing.
- Compare installation details. Check lead or connector arrangement, mounting position, clearances and insulation requirements against the original component. Do not bend or trim leads to force a fit.
- Request confirmation with evidence. Send the model/revision, installed reference, photos of the component and connections, quantity and destination using the compatibility and ordering guide or the contact page.
An EHT circuit can present an electrical hazard. Follow the manufacturer’s service procedure, isolate the equipment as instructed and have inspection or replacement handled by qualified personnel. Do not probe or replace an energized assembly.
FAQ
Does a 22 MΩ, 3 W marking alone confirm the right part?
No. Also check the installed reference, tolerance and other circuit requirements, connections, mounting and printer revision.
Does UL-EA1496 fit every CI580 or CI1000 revision?
The listing names CI580 and CI1000, but the exact installed reference and revision still need confirmation before ordering.
Is UL-EA1496 a genuine OEM component?
The store describes it as a compatible replacement unless explicitly stated otherwise; it is not represented here as a genuine OEM part.
