Direct answer: Order the UPLIMARK UDM-X0067 only after confirming that your Domino Ax-Series printer has the corresponding five-pin female alarm-light interface. “Ax-Series” and a five-pin count alone do not establish fit; verify the connector family, shell/thread, wiring assignment and machine revision against the installed part before ordering.
What the product listing confirms

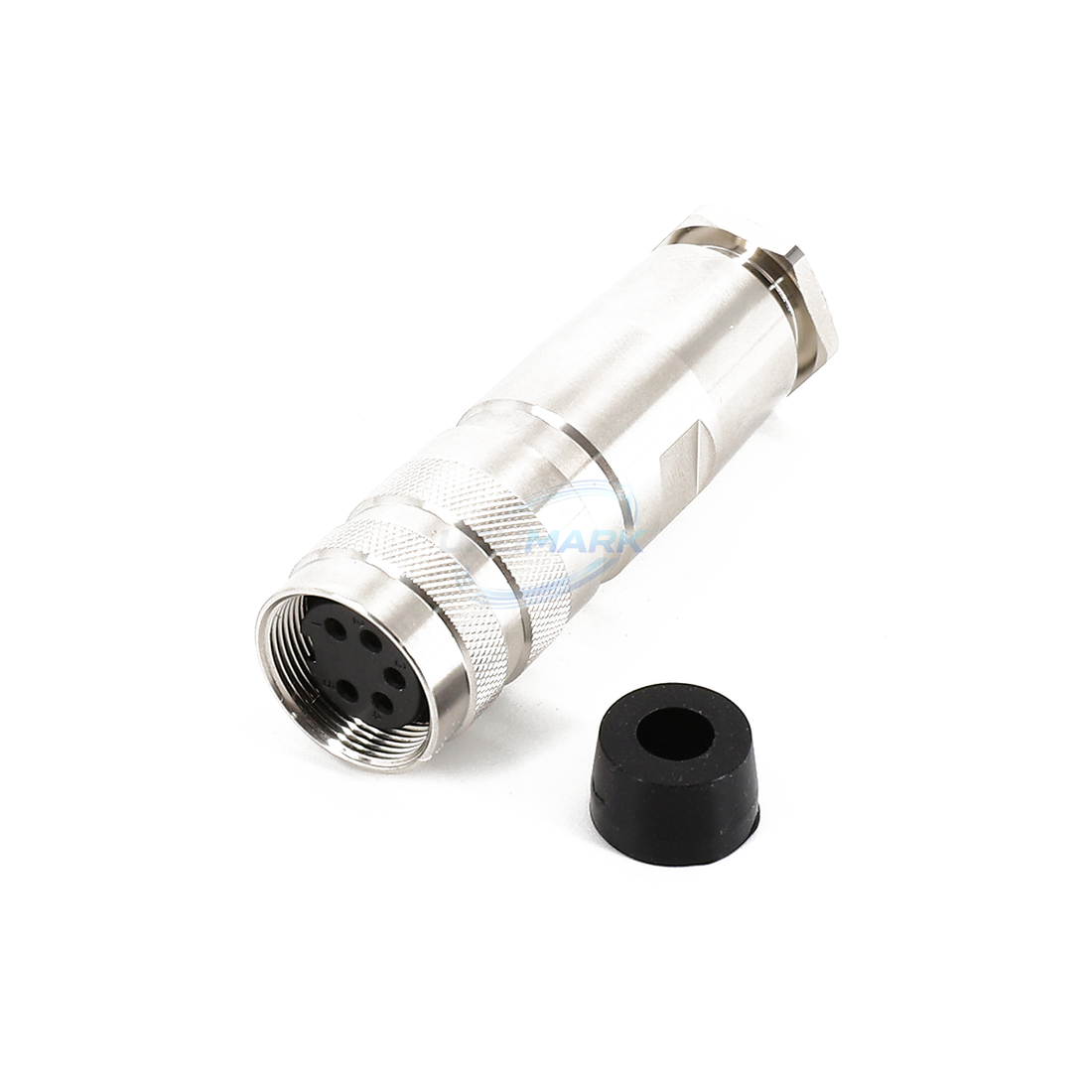

The store lists UDM-X0067 as a UPLIMARK compatible replacement adapter for the alarm-light interface on Domino Ax-Series printers. The listing identifies a stainless-steel, five-pin female connector. It does not establish that every Ax-Series revision uses the same mating connector, wiring or electrical rating. UPLIMARK is an independent supplier; this is not represented as a Domino-original part.
See the UDM-X0067 product listing and product photos for the item details. Compare the actual connector on your printer with those photos, not just the family name.
Before ordering: compare the installed connection
- Confirm the printer identity. Record the full Ax-Series model and revision from the machine identification label.
- Read the installed part marking. Photograph any reference number or label on the existing adapter, cable or alarm-light assembly. Do not assume a catalog cross-reference that is not shown in the listing.
- Compare the connector itself. Check five-pin layout and orientation, female interface, connector family, shell thread, mating half and cable termination. A matching pin count is not enough.
- Verify wiring and electrical requirements. Confirm pin assignment and required electrical/ingress ratings from the machine documentation or a qualified technician. The product listing does not state those ratings.
- Send evidence for confirmation. Provide the model/revision, installed reference marking, clear front and rear connector photos, cable/mating-part photos, quantity and destination through our compatibility and ordering guide or contact page.
For inspection, isolate equipment and follow the printer maker’s service instructions; have electrical work performed by qualified personnel. Do not connect an unverified adapter to test fit.
FAQ
Is five pins enough to confirm fit?
No. Connector family, gender, shell/thread, orientation, mating part, wiring and printer revision also need to match.
Does the listing specify pinout or electrical ratings?
No. Confirm these against the installed assembly and machine documentation before ordering or installation.
Is UDM-X0067 a Domino-original part?
The store lists it as a UPLIMARK compatible replacement. It is supplied by an independent seller and is not described as a Domino-original part.
