Direct answer: Before ordering a five-tube ink-core connection block listed for a Videojet 1710, compare the installed block and all five connections with the listing for UPLIMARK UVJ-39562-02. Confirm the printer model and revision, tube positions and sizes, port or thread interfaces, block seating, seal design, and the reference on the removed part. The listing describes this item as a compatible replacement—not a genuine OEM part—and visual similarity alone does not establish fit.
What the listing identifies

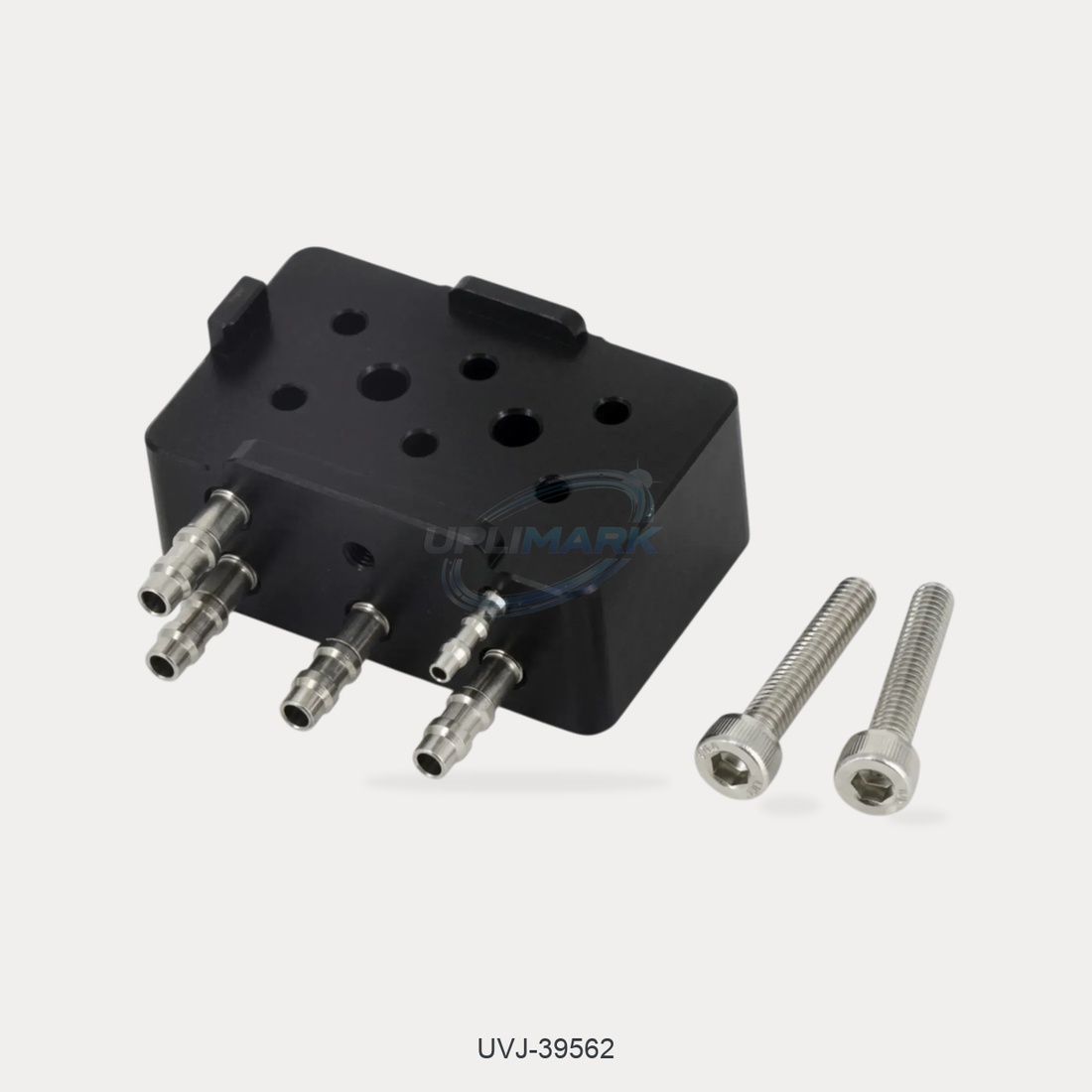

The store listing names UVJ-39562-02 as a five-tube ink-core connection block for Videojet 1710. It identifies the configuration as a compatible replacement. Treat that listing as a starting point for identification, not proof that every 1710 configuration or printer revision uses the same block. The product page shows the listed item and its price; included seals, fittings, or other components should not be assumed unless the seller confirms them in writing.
Five checks before you request a quote
- Record the printer identity. Send the complete model, serial or revision information available on the machine label, and the installed part reference. Do not rely on “Videojet 1710” alone if revisions or assemblies differ.
- Count and map the tube positions. The listing is for a five-tube configuration. Photograph the installed block straight-on and label each tube position before disconnection. Compare the arrangement with the product photos; do not infer flow direction or port assignment from appearance.
- Measure each interface. Record tube outside diameter, port or thread type, interface dimensions, and any differences between ports. A similar overall shape does not mean that the connections match.
- Compare seating and sealing details. Photograph the mating surface, block orientation, seals, and adjacent component. Confirm the sealing method and whether any separate seals or fittings are included before ordering.
- State quantity and destination. For a fitment check or quotation, provide the requested quantity and delivery country so the supplier can respond to the actual order request. Confirm current terms directly; do not assume availability or delivery timing from this guide.
For identification help, follow the CIJ compatibility and ordering guide. To ask about the listed part, use the UVJ-39562-02 enquiry link and attach clear photos of the machine label, removed part, five tube connections, and mating interface.
Safe inspection boundary
Do not remove or disconnect a fluid-system component while the printer is running or pressurized. Follow the applicable machine manual and site lockout, depressurization, and fluid-handling procedures; if the required safe state is unclear, have qualified service personnel identify it. This article is a procurement-identification guide, not a maintenance procedure or fault diagnosis.
Frequently asked questions
Does UVJ-39562-02 fit every Videojet 1710?
The listing identifies the five-tube connection block for Videojet 1710, but it does not establish fitment for every revision. Confirm the installed reference, tube arrangement, interfaces, seals, and machine details with the seller before ordering.
Is this an original Videojet part?
No such claim is made here. The store listing identifies it as a compatible replacement unless otherwise stated. Confirm the requested supply type directly if OEM status is a requirement.
What should I send for a fitment check?
Provide the full printer model and available revision details, the reference on the installed block, clear photos of all five connections and the mating face, measured interface details, required quantity, and delivery country.
Brand names are used only to identify equipment fitment. CIJ Printer Parts is operated by Uplimark LLC, an independent supplier; no manufacturer affiliation is implied.
