Backlit Display Converter Board for Markem-Imaje – UPLIMARK UMI-ENM17704-02

The UPLIMARK Backlit Display Converter Board, Variant 02 is a compatible industrial continuous-inkjet printer spare part for Markem-Imaje S-series display assemblies using the corresponding EB-type backlight converter board. It is intended for professional maintenance, troubleshooting and component replacement.

What Is the Backlit Display Converter Board, Variant 02?

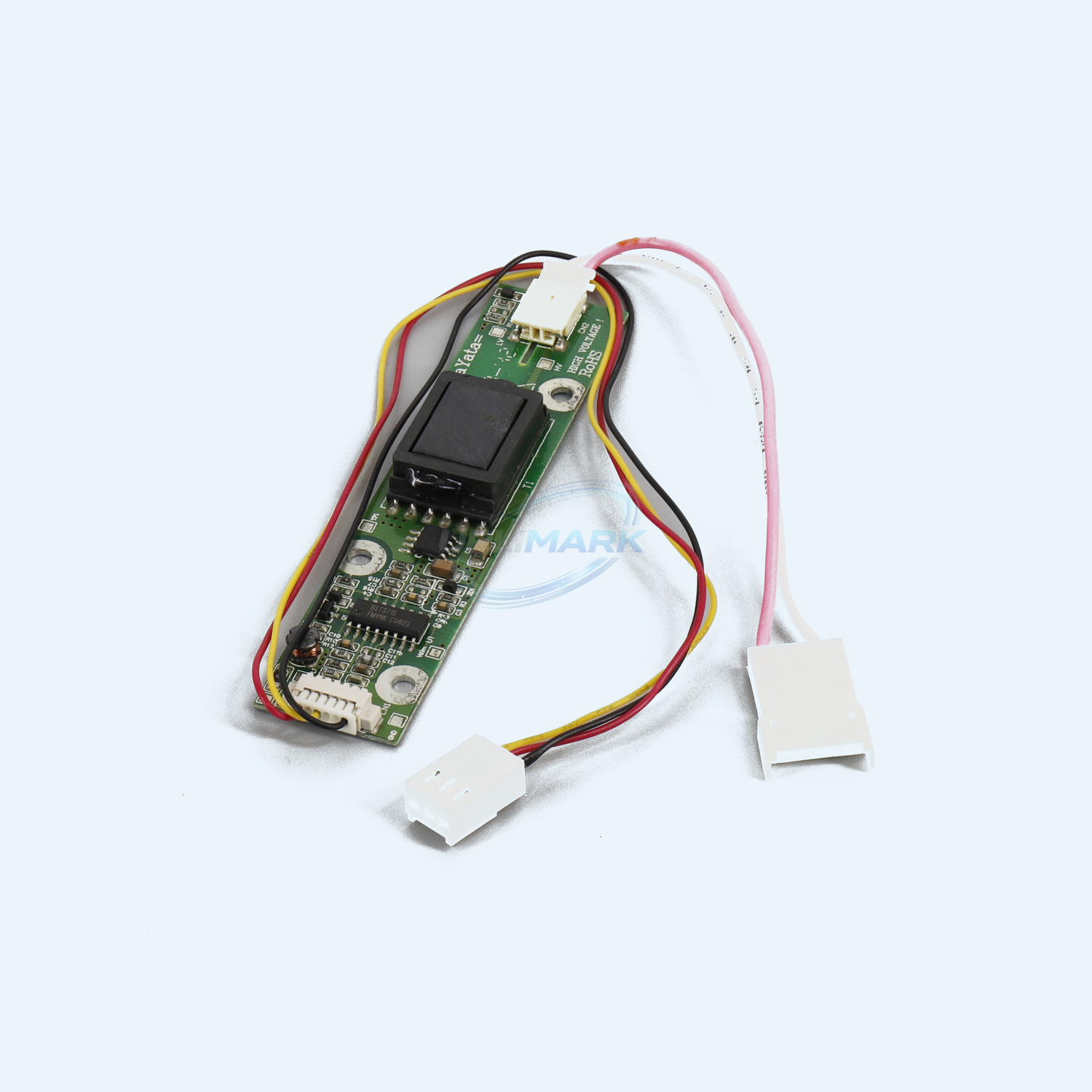

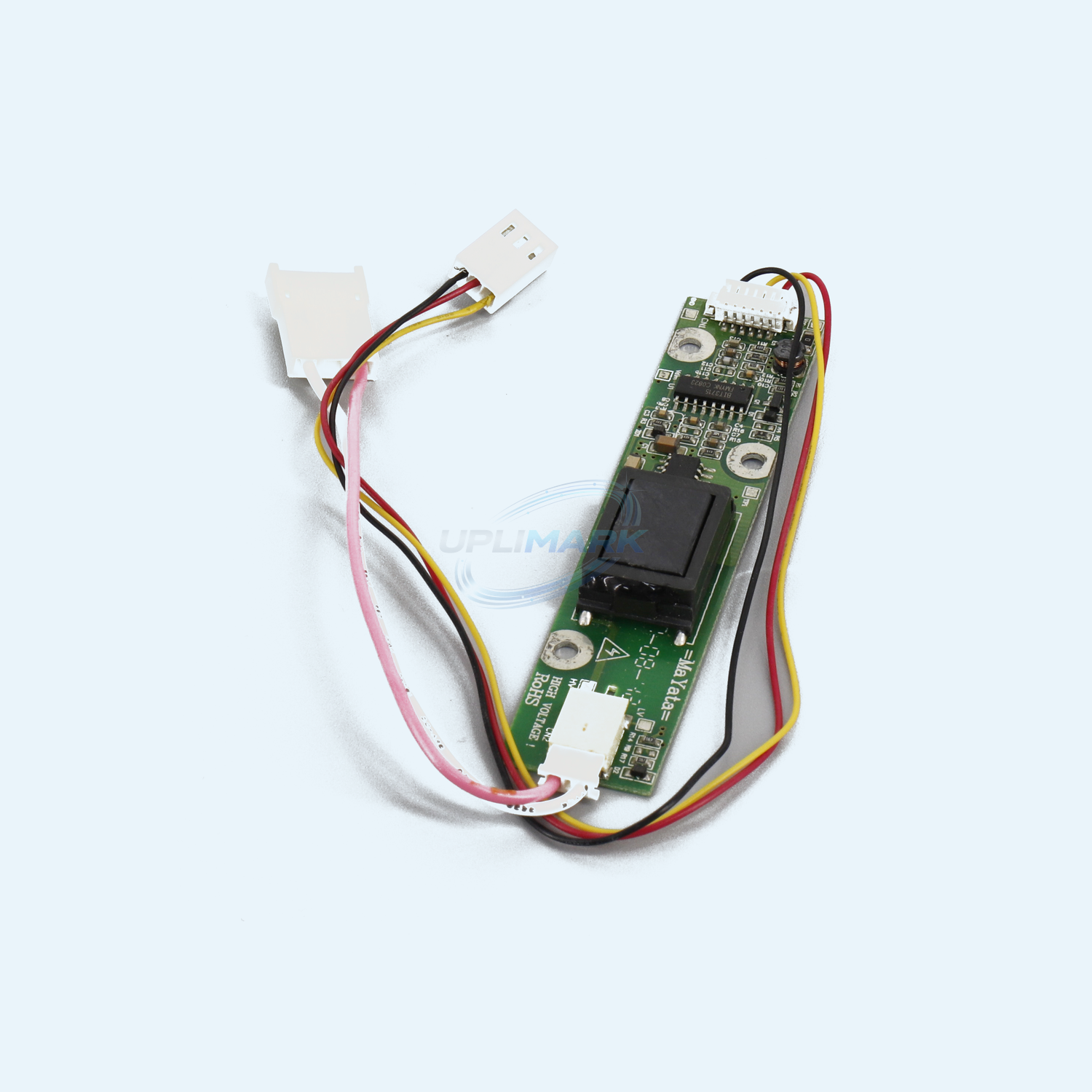

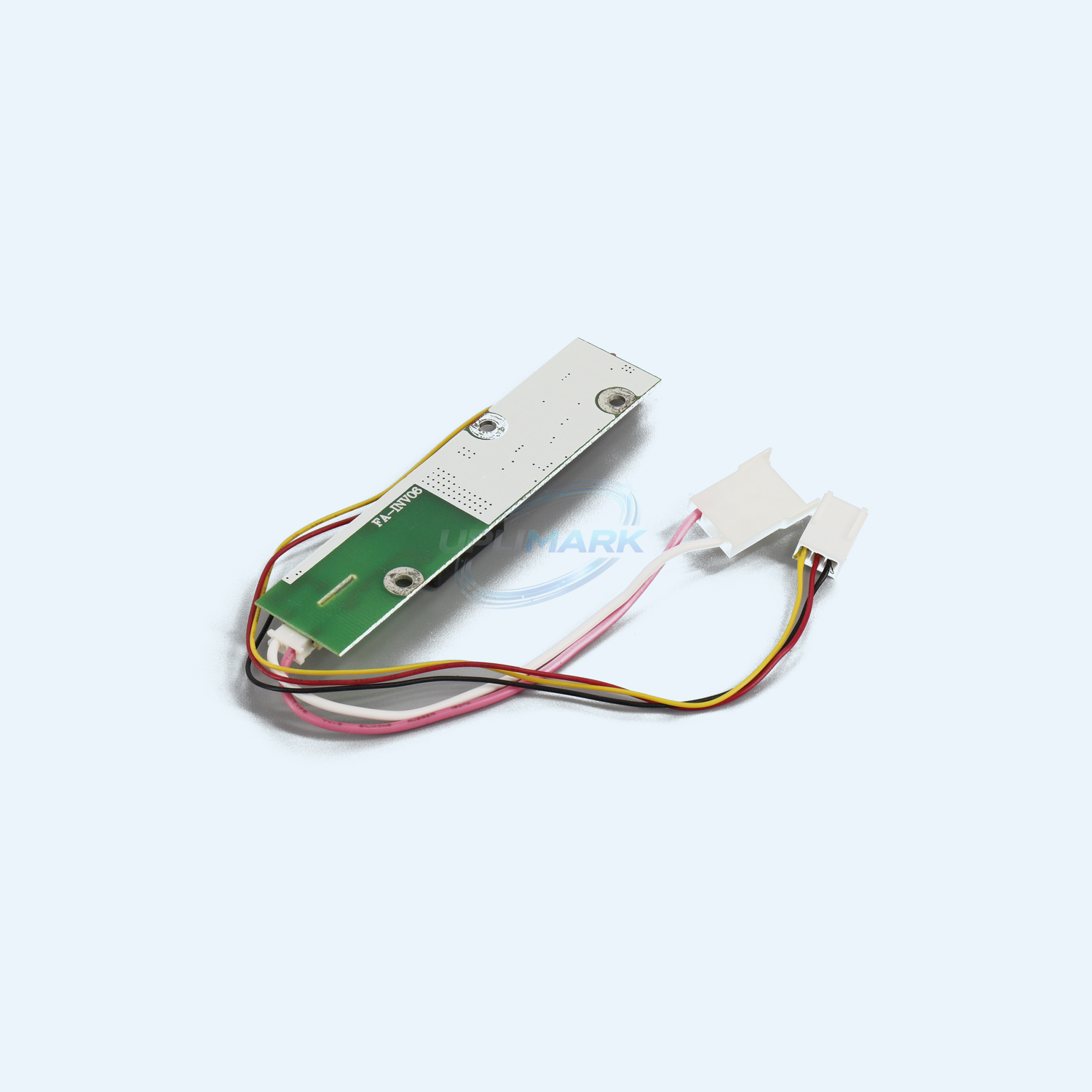

This item is an elongated backlight converter circuit board with the corresponding wiring harness and connectors identified by UPLIMARK model UMI-ENM17704-02.

Technical Details

• UPLIMARK model: UMI-ENM17704-02
• OEM reference: ENM17704
• Compatible equipment or use: Markem-Imaje S-series display assemblies using the corresponding EB-type backlight converter board
• Part type: elongated backlight converter circuit board with the corresponding wiring harness and connectors

Application

Use for maintenance or replacement of the corresponding component in a compatible Markem-Imaje coding and marking system.

How Do I Confirm Compatibility?

Confirm UPLIMARK variant 02, PCB layout and revision, connector housings and pin count, wire colors and lengths, mounting points and display revision before ordering.

Packaging, Condition and Lead Time

Contact UPLIMARK for current stock, packaging, exact included items, supply condition and lead time. For electronic or serviced assemblies, confirm the required supply condition before ordering.

Selection and ordering questions

Will any board for the same printer series work? Not necessarily. Match the exact board revision and configuration before ordering; plug-and-play operation is not assumed.

Request a fitment check or quotation

Ask UPLIMARK about UMI-ENM17704-02. Send your printer model, installed part reference, clear component photos, quantity and delivery destination for a fitment review and quotation.

Use our compatibility and ordering guide to prepare the information needed before ordering.

Manufacturer names and trademarks are used only to identify equipment compatibility. Unless explicitly stated otherwise, items are supplied as compatible replacements.
