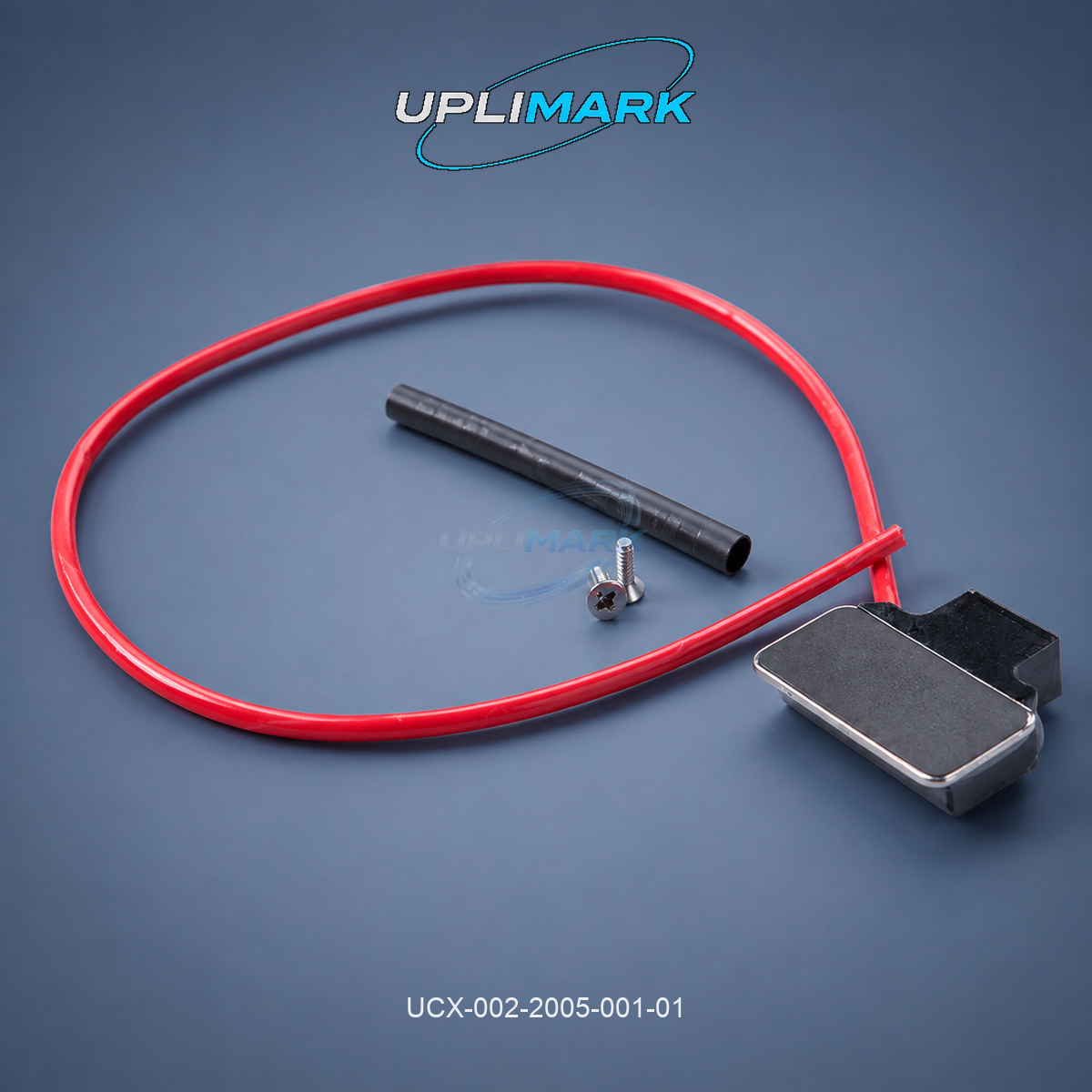

High-Voltage Deflection Plate with Resistor Variant 01 for Citronix CI580 and CI1000 Series – UPLIMARK UCX-002-2005-001-01

The UPLIMARK High-Voltage Deflection Plate with Resistor Variant 01 is an industrial coding spare part for Citronix CI580 and CI1000 Series printheads using the exact Variant 01 high-voltage deflection plate and resistor configuration. It is intended for professional maintenance, repair or component replacement.

What Is the High-Voltage Deflection Plate with Resistor Variant 01?

This item is a high voltage deflection plate with resistor variant 01 identified by UPLIMARK model UCX-002-2005-001-01.

Technical Details

• UPLIMARK model: UCX-002-2005-001-01
• Condition: New compatible replacement part unless otherwise confirmed in the quotation
• Compatible equipment or use: Citronix CI580 and CI1000 Series printheads using the exact Variant 01 high-voltage deflection plate and resistor configuration
• Part type: high voltage deflection plate with resistor variant 01
• Included items: One compatible replacement component unless the quotation states otherwise.
• Reference status: Confirm by UPLIMARK model, component photographs, dimensions or an approved sample

Image status: No approved high-resolution image is displayed pending exact UPLIMARK product photography; low-resolution, watermarked, labeled or structurally unverified legacy images are excluded.

Application

Use for professional maintenance, troubleshooting, repair or replacement in a compatible continuous inkjet coding system.

How Do I Confirm Compatibility?

Confirm Variant 01, printer and printhead revision, plate geometry and gap, resistor value and mounting, insulators, lead length, terminals, polarity and all dimensions before ordering.

Packaging, Condition and Lead Time

Contact UPLIMARK for current stock, packaging, exact included items, supply condition and lead time. Confirm revision, electrical or pressure requirements and installation details before ordering.

Request a Quote

Send the printer model, current part number, clear component photographs, relevant dimensions or connector details and required quantity for compatibility confirmation and a quotation.

Manufacturer names and trademarks are used only to identify equipment compatibility. Unless explicitly stated otherwise, items are supplied as compatible replacements.
