Ax-Series Crystal Oscillator Copper Sheet for Domino Ax-Series – UPLIMARK UDM-X0151

The UPLIMARK Ax-Series Crystal Oscillator Copper Sheet is a compatible industrial coding and marking spare part or service component for Domino Ax-Series CIJ systems using the corresponding oscillator mounting and grounding-sheet geometry. It is intended for professional maintenance, troubleshooting or component replacement.

What Is the Ax-Series Crystal Oscillator Copper Sheet?

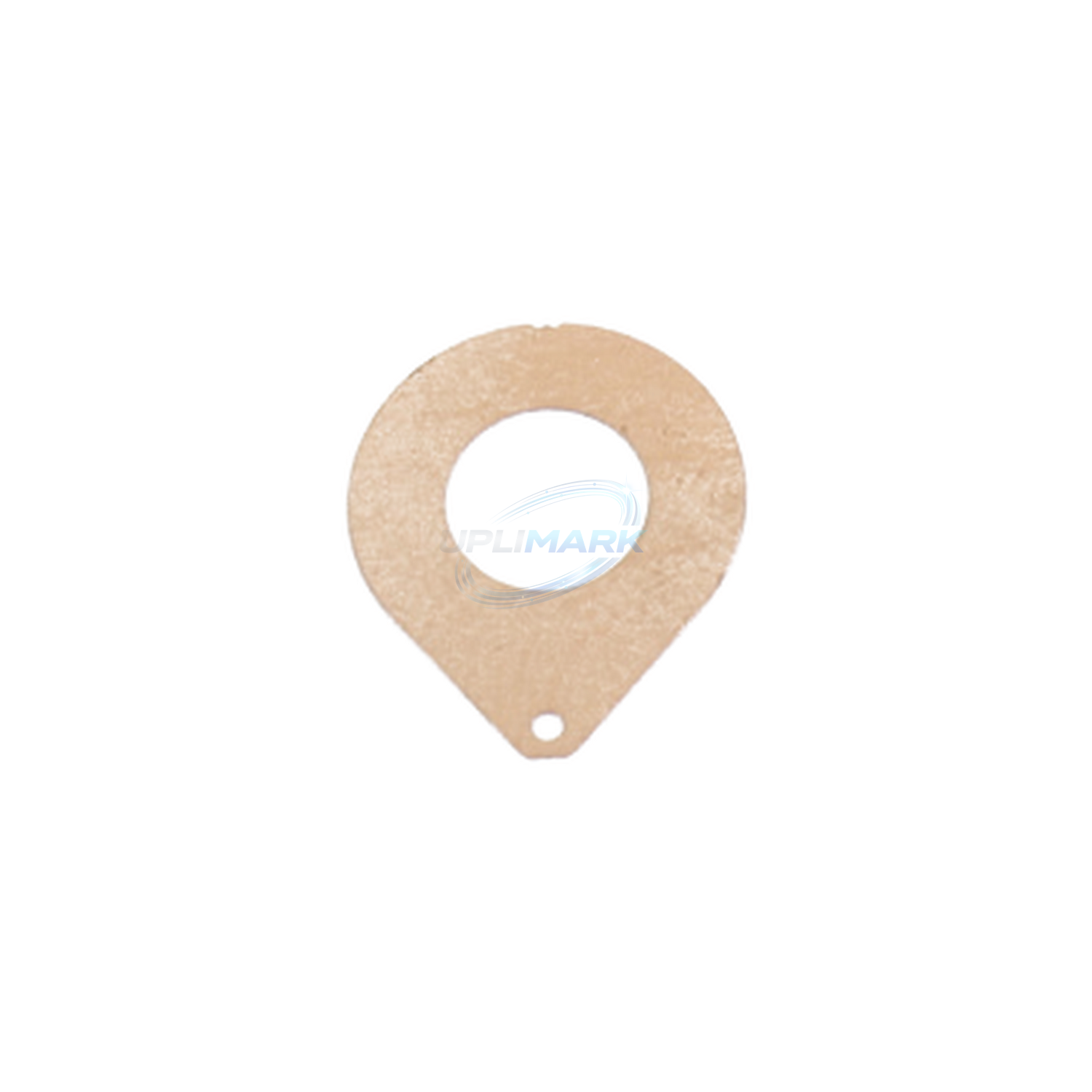

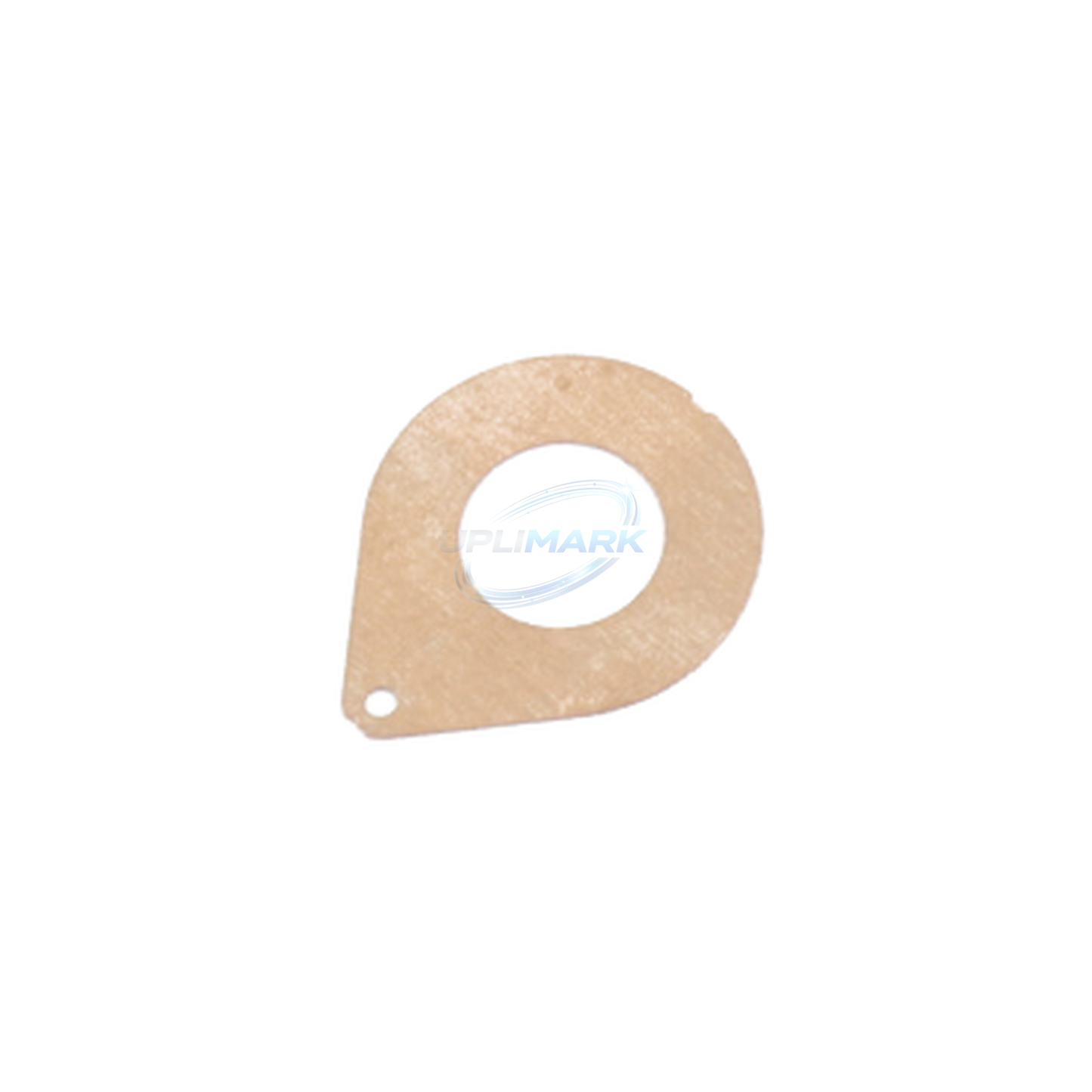

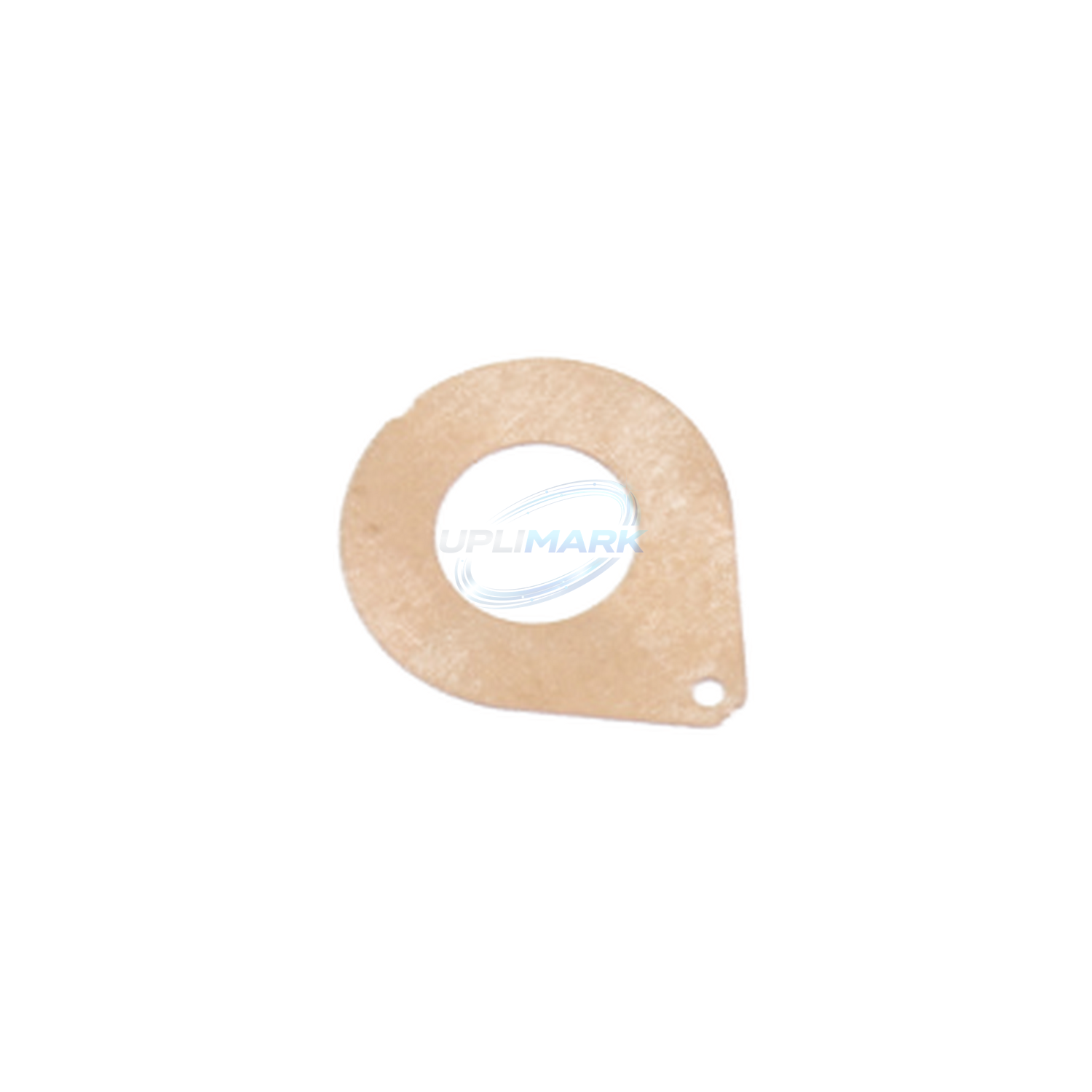

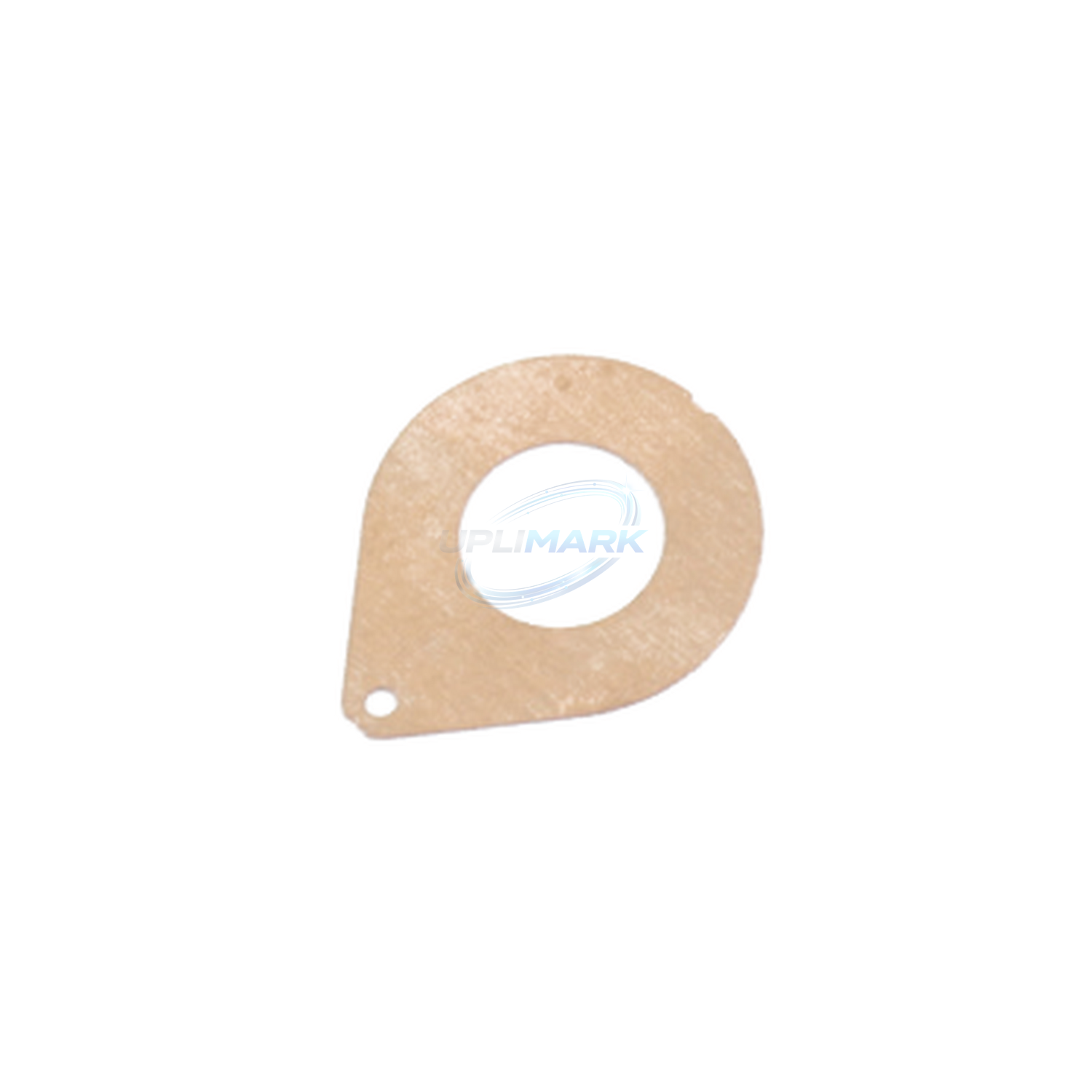

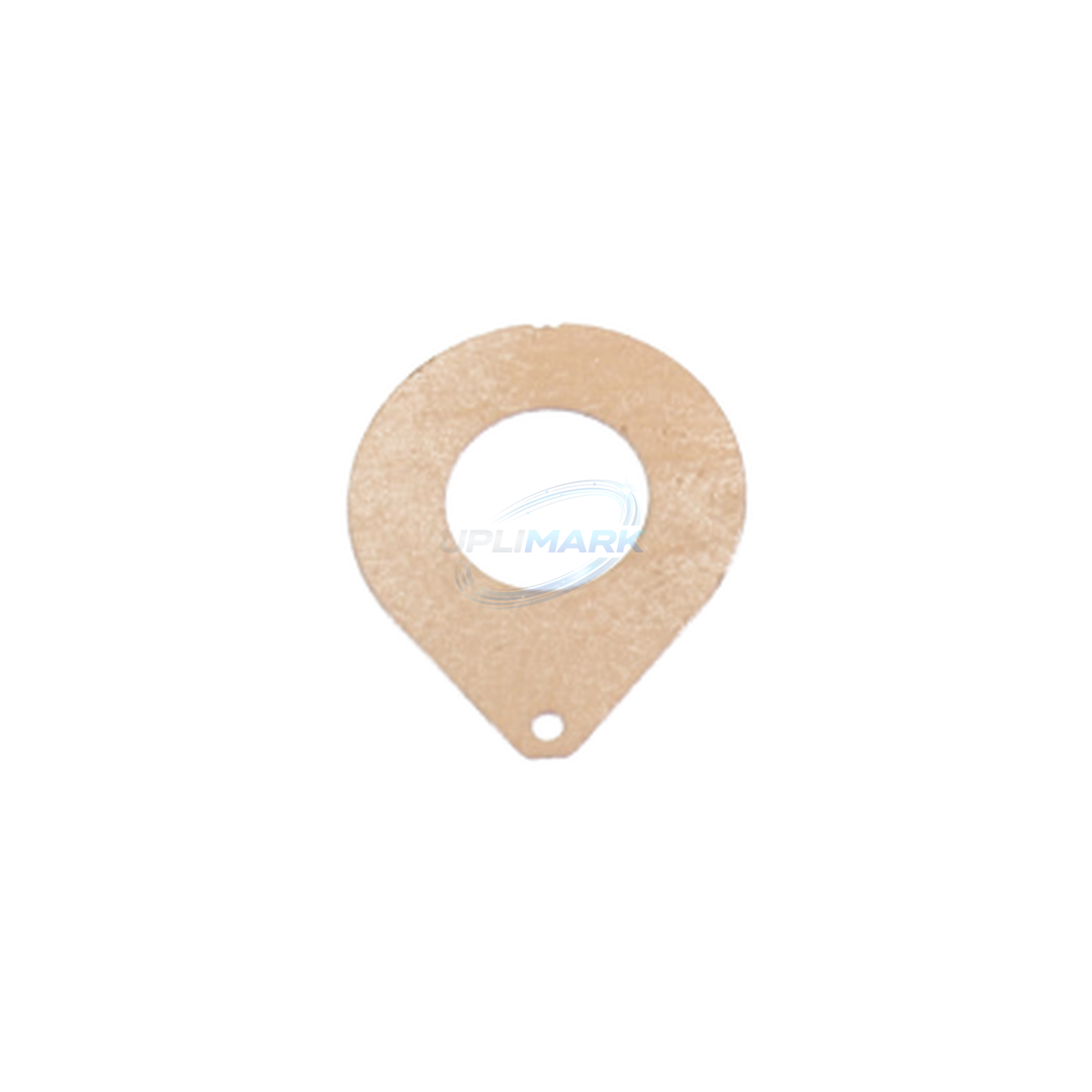

This item is a copper mounting or grounding sheet for the crystal oscillator assembly identified by UPLIMARK model UDM-X0151.

Technical Details

• UPLIMARK model: UDM-X0151
• Compatible equipment or use: Domino Ax-Series CIJ systems using the corresponding oscillator mounting and grounding-sheet geometry
• Part type: copper mounting or grounding sheet for the crystal oscillator assembly

Image or reference status: Three exact high-resolution local views are published after close crop and light angle adjustment; no supplier watermark or applied label is visible.

Application

Use for maintenance, repair or replacement of the corresponding component in a compatible industrial coding and marking system.

How Do I Confirm Compatibility?

Confirm overall outline, large and small hole diameters, copper thickness, mounting orientation and exact Ax-Series revision before ordering.

Packaging, Condition and Lead Time

Contact UPLIMARK for current stock, packaging, exact included items, supply condition and lead time. For electronic, used or serviced assemblies, confirm the required supply condition and test status before ordering.

Request a Quote

Send the printer model, current part number, clear component photos, relevant dimensions or connector details and required quantity for compatibility confirmation and a quotation.

Manufacturer names and trademarks are used only to identify equipment compatibility. Unless explicitly stated otherwise, items are supplied as compatible replacements.
