Dual-Nozzle Charge-Slot Bracket Assembly, Variant 02 for Domino 422i – UPLIMARK UDM-2-0160113SP-02

The UPLIMARK Dual-Nozzle Charge-Slot Bracket Assembly, Variant 02 is a compatible industrial coding and marking spare part or service component for Domino 422i dual-nozzle CIJ printheads using the exact UPLIMARK Variant 02 charge-slot bracket configuration. It is intended for professional maintenance, troubleshooting or component replacement.

What Is the Dual-Nozzle Charge-Slot Bracket Assembly, Variant 02?

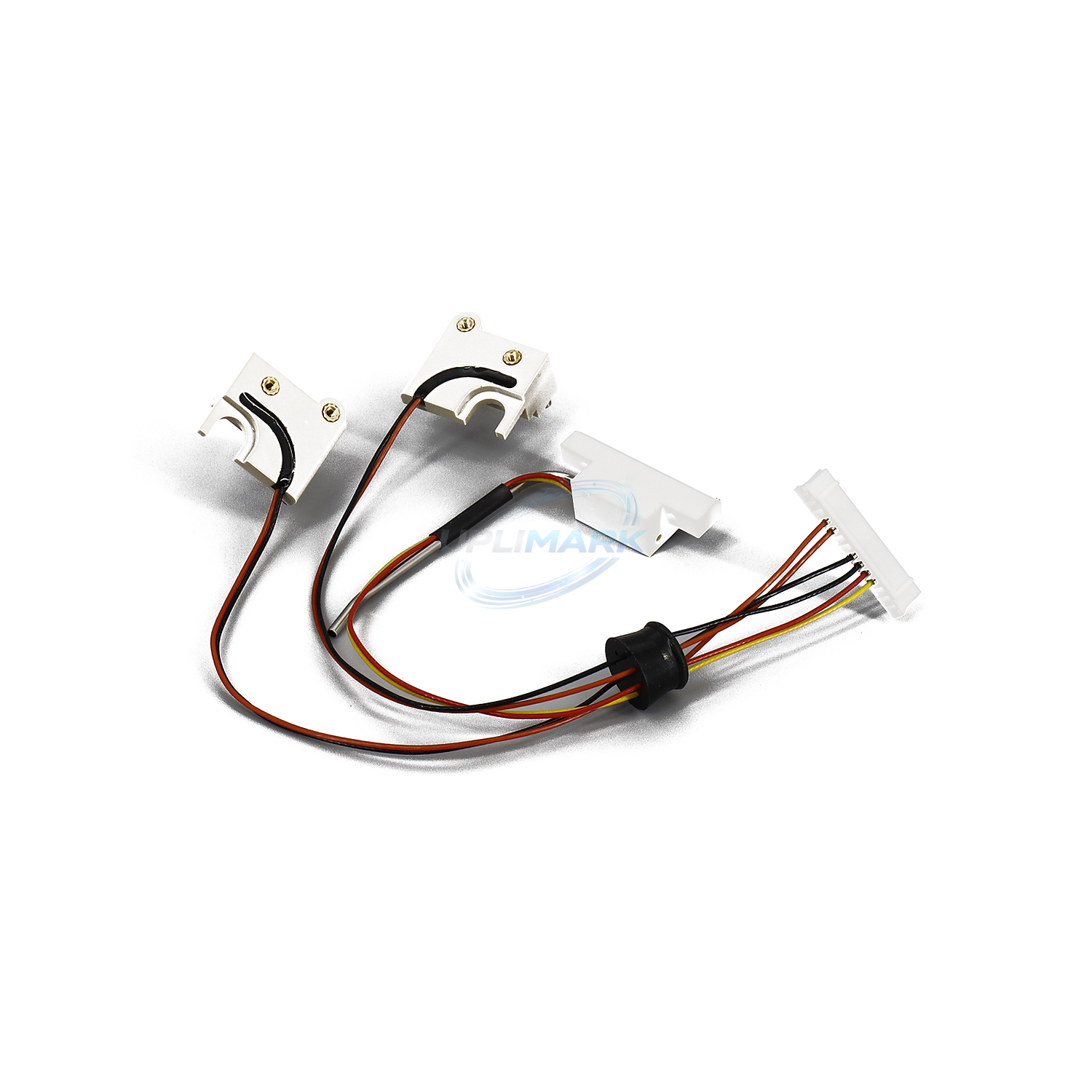

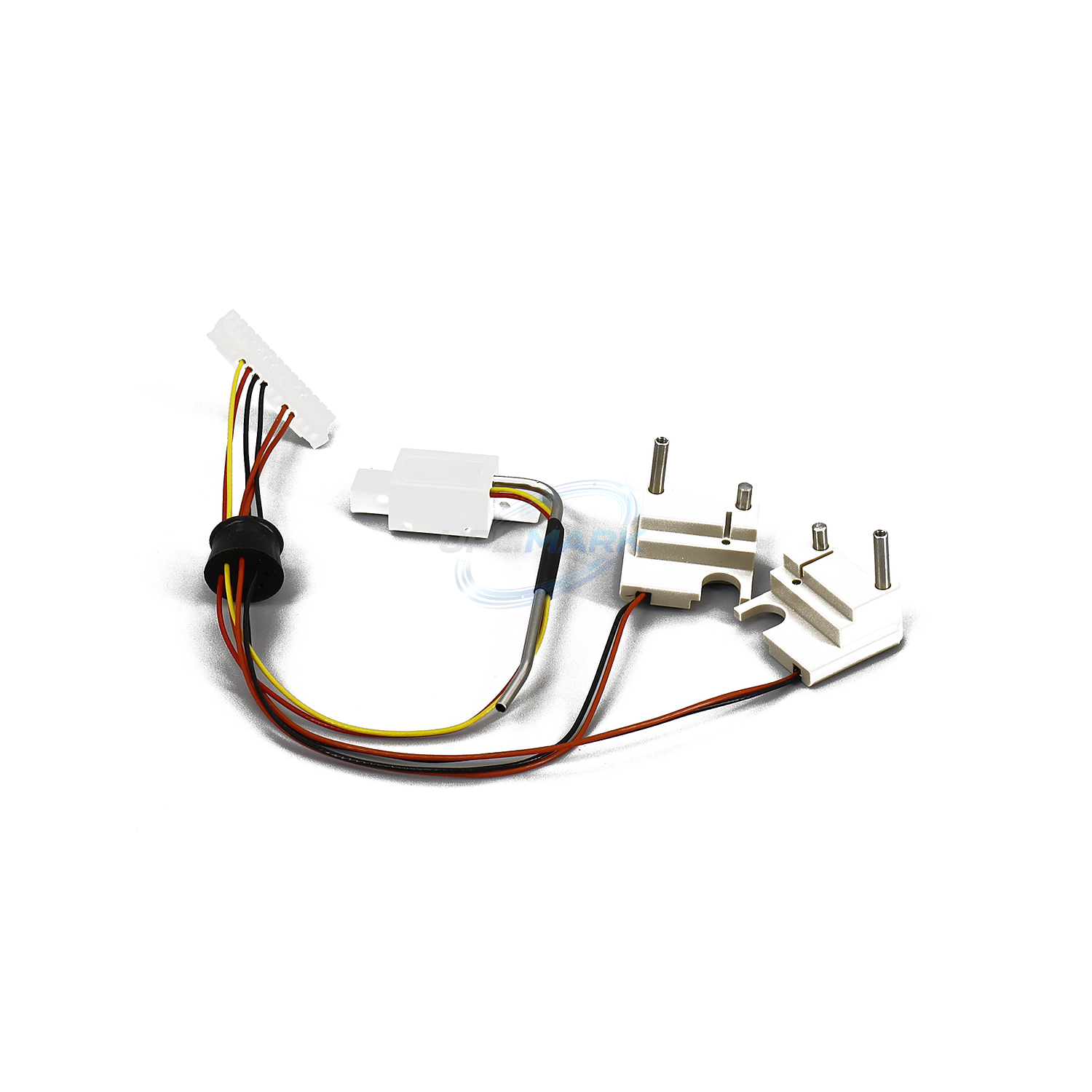

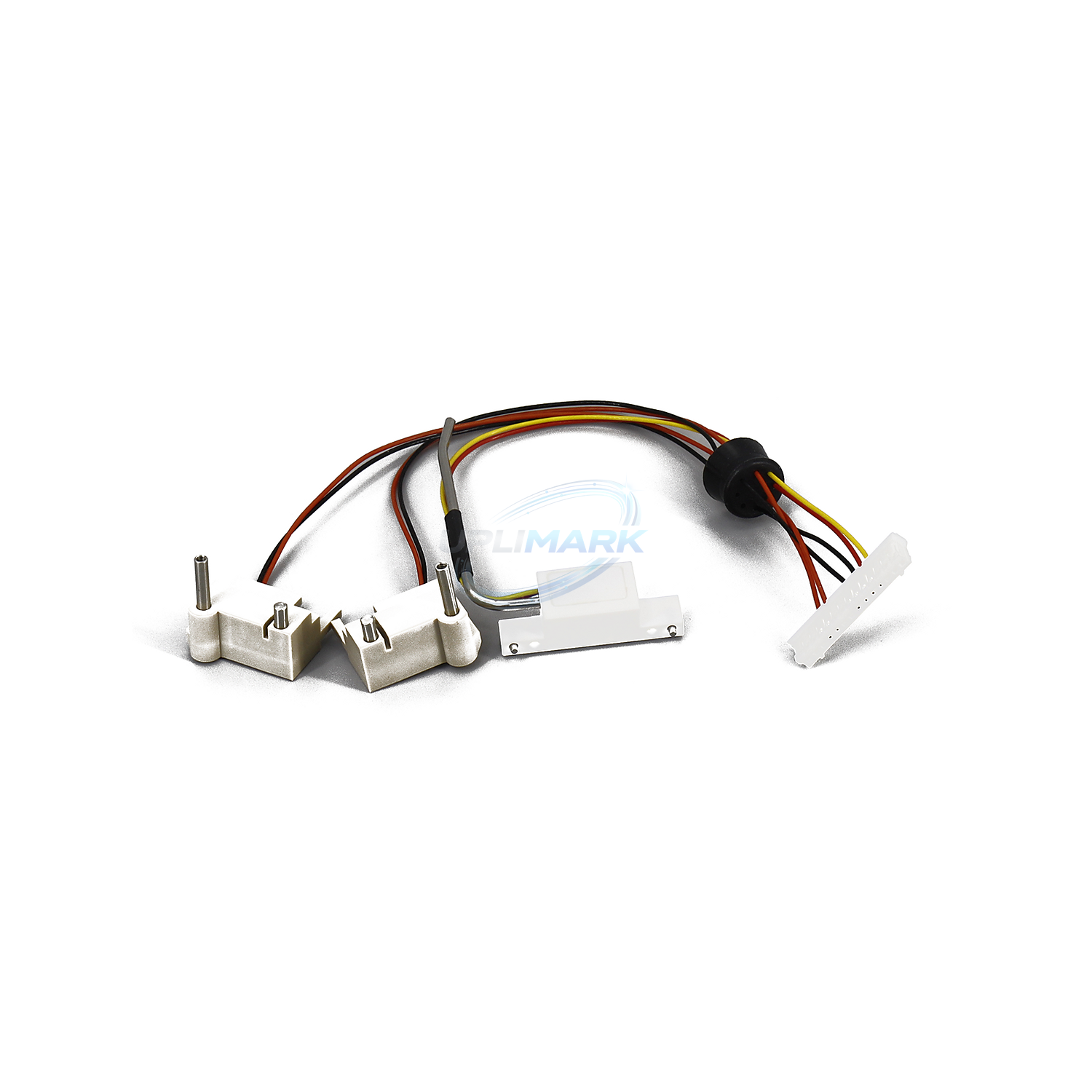

This item is a dual-nozzle charge-slot bracket assembly with wiring and mounting hardware, UPLIMARK variant 02 identified by UPLIMARK model UDM-2-0160113SP-02.

Technical Details

• UPLIMARK model: UDM-2-0160113SP-02
• OEM reference: 2-0160113SP
• Compatible equipment or use: Domino 422i dual-nozzle CIJ printheads using the exact UPLIMARK Variant 02 charge-slot bracket configuration
• Part type: dual-nozzle charge-slot bracket assembly with wiring and mounting hardware, UPLIMARK variant 02

Image or reference status: Only the exact DB Variant 02 new-part views are used; dismantled DA views and other suffix variants are not mixed into this listing.

Application

Use for maintenance, repair or replacement of the corresponding component in a compatible industrial coding and marking system.

How Do I Confirm Compatibility?

Confirm OEM reference 2-0160113SP, the -02 variant, dual-nozzle spacing, bracket geometry, electrode or gutter interfaces, wiring and connectors, mounting points and exact 422i printhead revision before ordering.

Packaging, Condition and Lead Time

Contact UPLIMARK for current stock, packaging, exact included items, supply condition and lead time. For electronic, used or serviced assemblies, confirm the required supply condition and test status before ordering.

Request a Quote

Send the printer model, current part number, clear component photos, relevant dimensions or connector details and required quantity for compatibility confirmation and a quotation.

Manufacturer names and trademarks are used only to identify equipment compatibility. Unless explicitly stated otherwise, items are supplied as compatible replacements.
