High-Voltage Deflector Plate Assembly for Domino A-Series – UPLIMARK UDM-36703-01

The UPLIMARK High-Voltage Deflector Plate Assembly is a compatible industrial coding and marking spare part for Domino A-Series printheads requiring OEM reference 36703 and the matching standard high-voltage deflector plate assembly. It is intended for professional maintenance, troubleshooting or component replacement.

What Is the High-Voltage Deflector Plate Assembly?

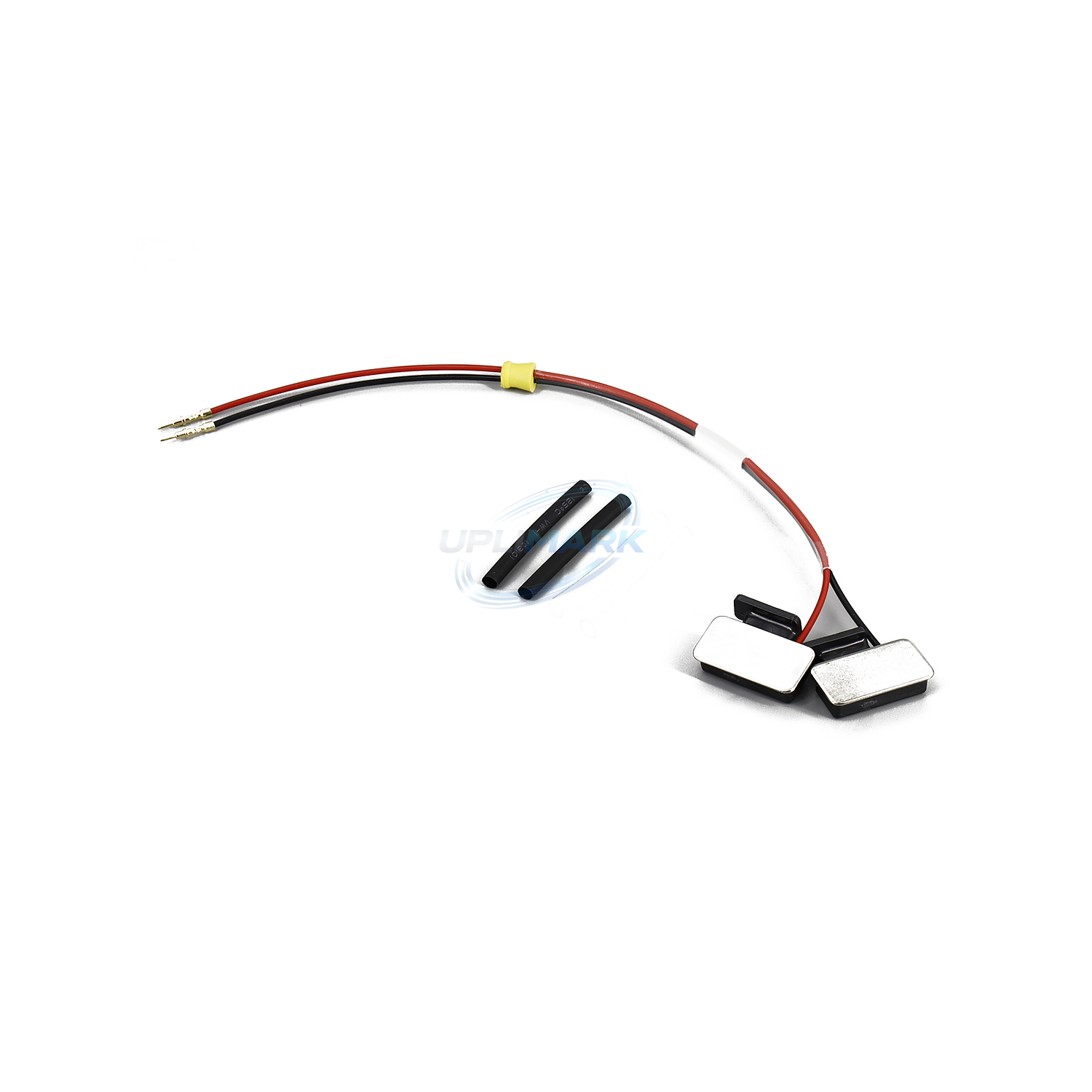

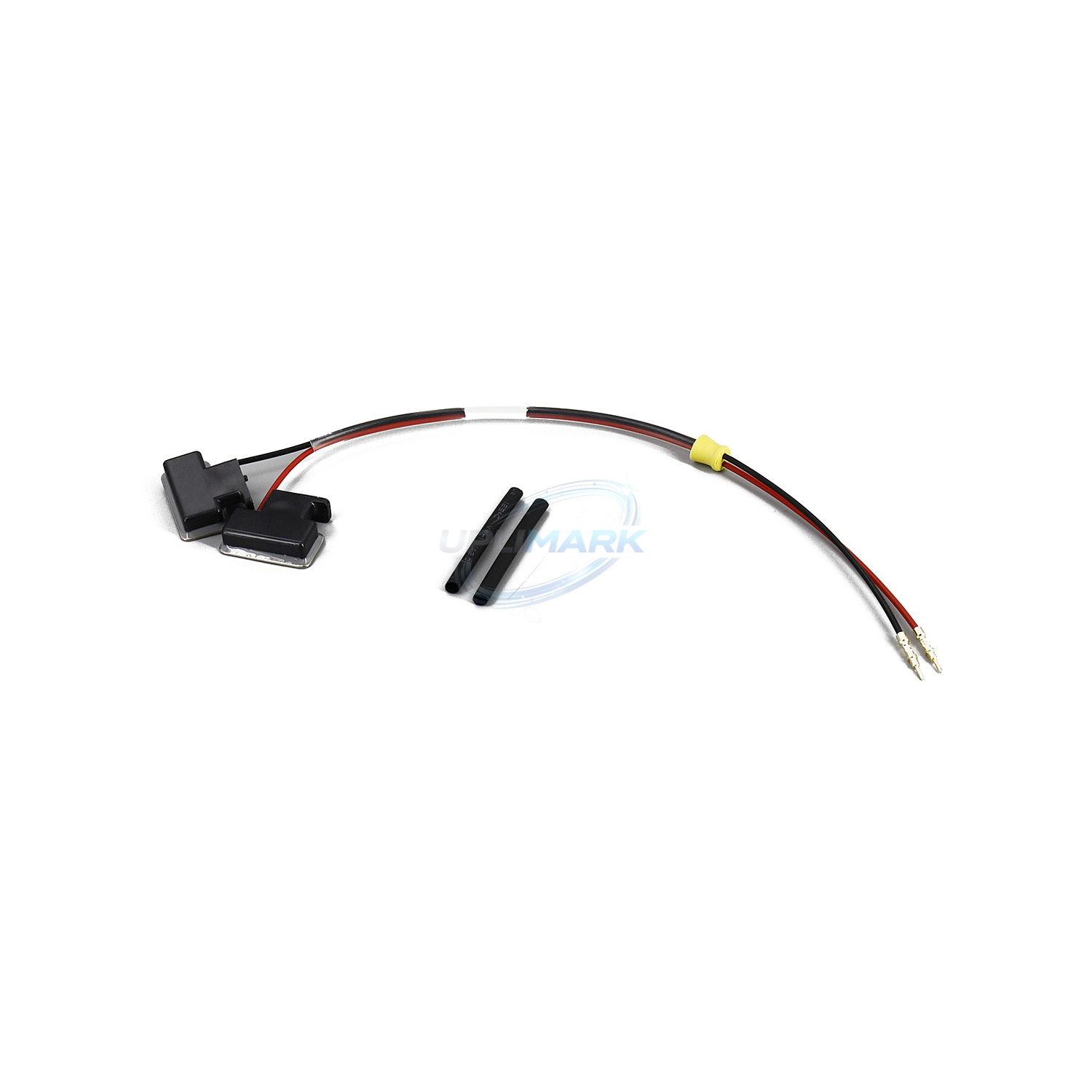

This item is a paired deflector plate assembly with red and black leads, terminals and insulating sleeves identified by UPLIMARK model UDM-36703-01.

Technical Details

• UPLIMARK model: UDM-36703-01
• Compatible equipment or use: Domino A-Series printheads requiring OEM reference 36703 and the matching standard high-voltage deflector plate assembly
• Part type: paired deflector plate assembly with red and black leads, terminals and insulating sleeves

Image or reference status: Two exact local DB36703 high-resolution views are published on a clean white background with light angle adjustments. The separate DB36703-280 white-ink version is not mixed in, and a third exact view exposing a wire identification label is withheld.

Application

Use for maintenance, repair, installation or replacement of the corresponding component in a compatible continuous inkjet coding system.

How Do I Confirm Compatibility?

Confirm OEM reference 36703, exact UPLIMARK suffix -01, standard versus white-ink configuration, plate dimensions and spacing, wire lengths, terminals and insulation before ordering.

Packaging, Condition and Lead Time

Contact UPLIMARK for current stock, packaging, exact included items, supply condition and lead time. For electronic, used or serviced assemblies, confirm the required supply condition and test status before ordering.

Request a Quote

Send the printer model, current part number, clear component photos, relevant dimensions or connector details and required quantity for compatibility confirmation and a quotation.

Manufacturer names and trademarks are used only to identify equipment compatibility. Unless explicitly stated otherwise, items are supplied as compatible replacements.
