Make-Up Ink Connection Block for Hitachi Coding Equipment – UPLIMARK UHT-X0136

The UPLIMARK Make-Up Ink Connection Block is a compatible industrial coding spare part for Hitachi UX and GU printers requiring the matching make-up ink connection block. It is intended for professional maintenance, repair or component replacement.

What Is the Make-Up Ink Connection Block?

This item is a make up ink connection block identified by UPLIMARK model UHT-X0136.

Technical Details

• UPLIMARK model: UHT-X0136
• Reference status: UPLIMARK internal model; confirm by drawing, dimensions, measured sample or clear photographs
• Compatible equipment or use: Hitachi UX and GU printers requiring the matching make-up ink connection block
• Part type: make up ink connection block

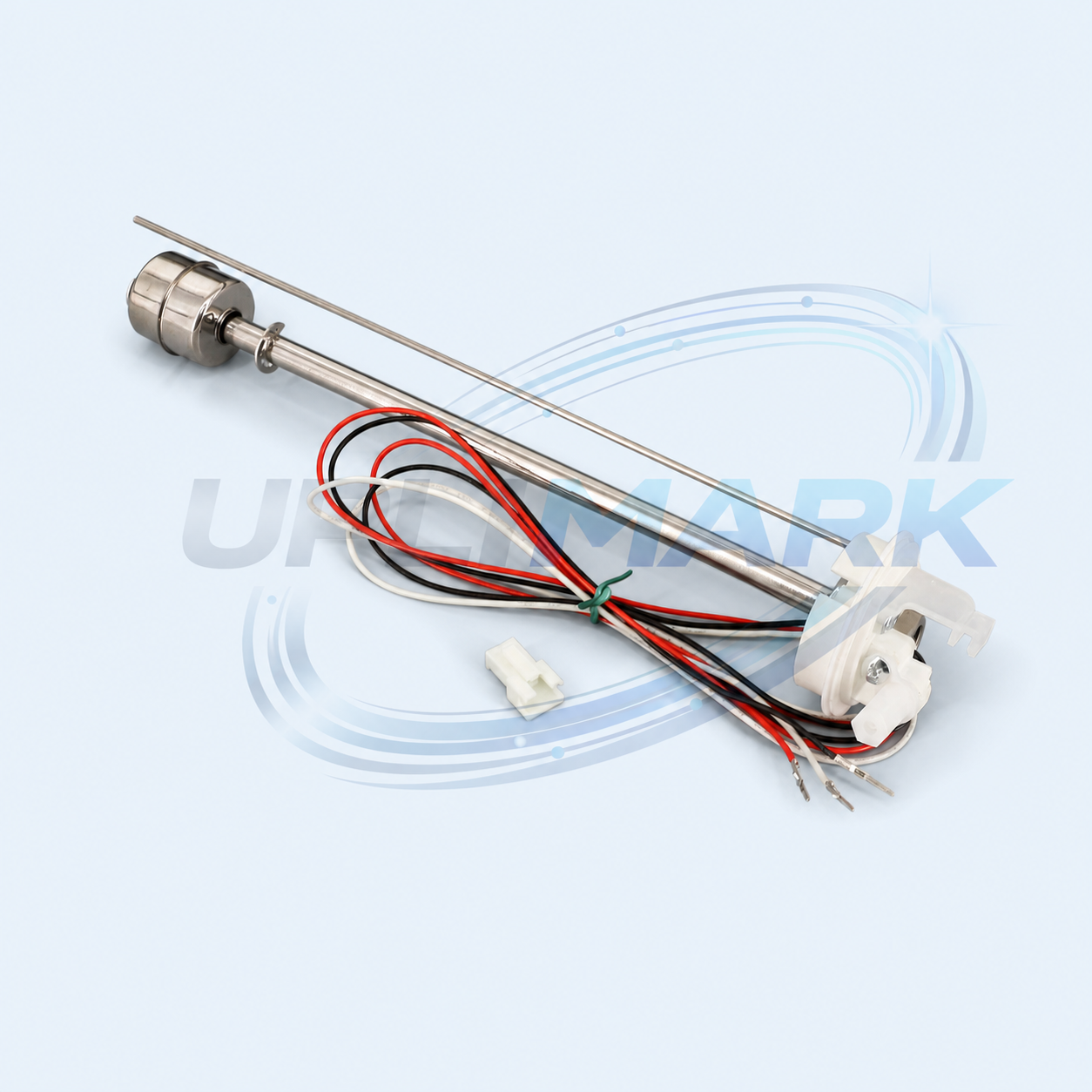

Image or reference status: An exact owned high-resolution photograph was transformed to a pale-blue-background light-angle view. Review confirmed the long metal tube, separate thin rod, cylindrical float, white connection block, wire bundle, loose connector and exposed terminals; the source-record naming discrepancy remains flagged for compatibility confirmation.

Application

Use for professional maintenance, troubleshooting, repair or replacement in a compatible continuous inkjet coding system.

How Do I Confirm Compatibility?

Confirm the installed fluid circuit, white block geometry, float and long-rod arrangement, wiring colors and count, loose connector, terminal types, ports and exact UX or GU revision. Source records use differing fluid-circuit names for this same mapped item, so confirm whether the installed position is make-up or solvent before ordering.

Packaging, Condition and Lead Time

Contact UPLIMARK for current stock, packaging, exact included items, supply condition and lead time. Confirm revision, test status and installation requirements before ordering electronic or serviced assemblies.

Request a Quote

Send the printer model, current part number, clear component photographs, relevant dimensions or connector details and required quantity for compatibility confirmation and a quotation.

Manufacturer names and trademarks are used only to identify equipment compatibility. Unless explicitly stated otherwise, items are supplied as compatible replacements.
