M6 Pressure Joint H8-M5 for Markem-Imaje S4/S8/9040 – UPLIMARK UMI-X0536

The UPLIMARK M6 Pressure Joint H8-M5 is an industrial coding-printer spare part for Markem-Imaje S4, S8 and 9040 printers using the corresponding M6 pressure line. It is intended for professional continuous inkjet printer maintenance and component replacement.

What Is the M6 Pressure Joint H8-M5?

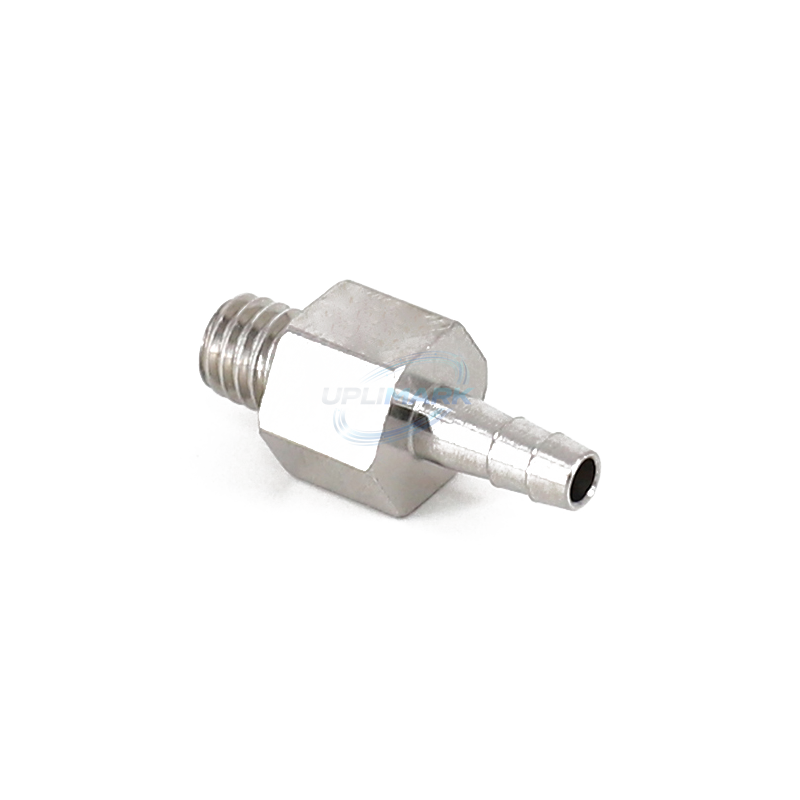

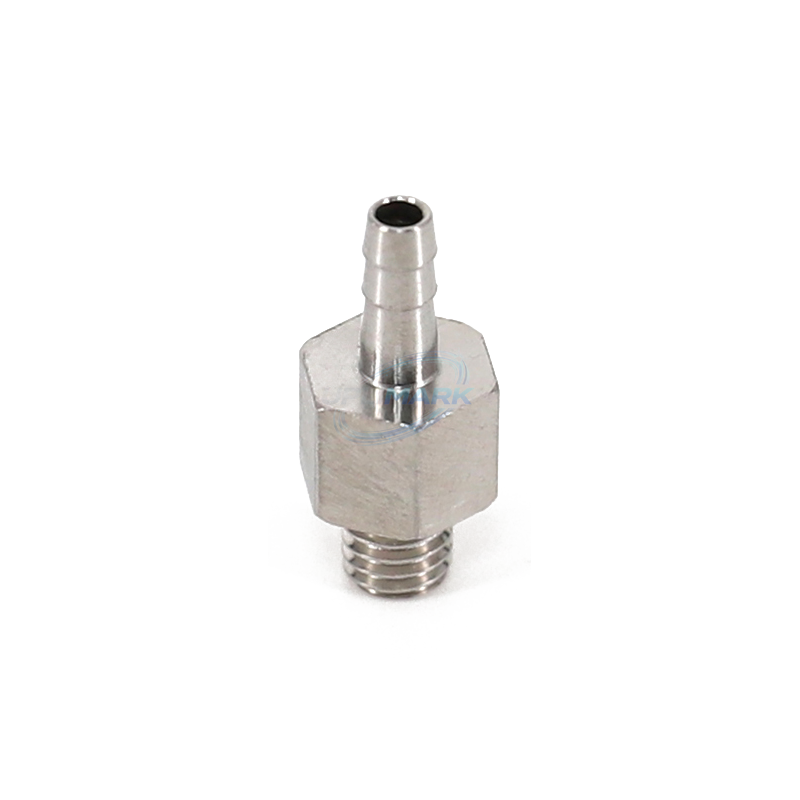

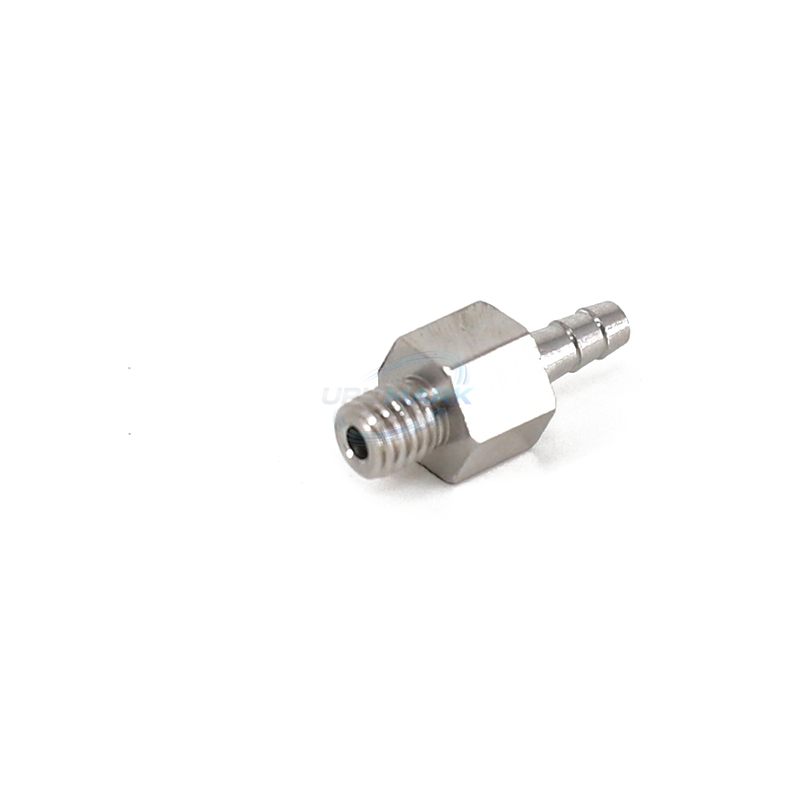

This item is a machined pressure joint for 3.2 mm tubing with H8-M5 configuration identified by UPLIMARK model UMI-X0536.

Technical Details

• UPLIMARK model: UMI-X0536
• Compatible equipment: Markem-Imaje S4, S8 and 9040 printers using the corresponding M6 pressure line
• Part type: machined pressure joint for 3.2 mm tubing with H8-M5 configuration

Application

Use for scheduled maintenance, troubleshooting or replacement of the corresponding component in the compatible CIJ coding and marking system.

How Do I Confirm Compatibility?

Confirm the 3.2 mm tube connection, M5 thread, H8 hex, bore, overall length and installed M6 pressure-line configuration before ordering. Higher-resolution photos are requested.

Packaging and Lead Time

Contact UPLIMARK for current stock, packaging details and lead time.

Selection and ordering questions

Does a similar shape guarantee compatibility? No. Measure the interfaces and match the existing reference; fittings may differ even when their overall shapes are similar.

Request a fitment check or quotation

Ask UPLIMARK about UMI-X0536. Send your printer model, installed part reference, clear component photos, quantity and delivery destination for a fitment review and quotation.

Use our compatibility and ordering guide to prepare the information needed before ordering.

Manufacturer names and trademarks are used only to identify equipment compatibility. Unless explicitly stated otherwise, new items are supplied as compatible replacements. Used/disassembled items are identified separately above.
