Phase Amplifier PC Board Assembly for Citronix CIJ Systems – UPLIMARK UCX-002-1073-002

The UPLIMARK Phase Amplifier PC Board Assembly is an industrial coding spare part for Citronix printhead phase-detection circuits using the matching metal module, wire set, connector and supplied heat-shrink sleeves. It is intended for professional maintenance, repair or component replacement.

What Is the Phase Amplifier PC Board Assembly?

This item is a phase amplifier pc board assembly identified by UPLIMARK model UCX-002-1073-002.

Technical Details

• UPLIMARK model: UCX-002-1073-002
• Condition: New compatible replacement part unless otherwise confirmed in the quotation
• Compatible equipment or use: Citronix printhead phase-detection circuits using the matching metal module, wire set, connector and supplied heat-shrink sleeves
• Part type: phase amplifier pc board assembly

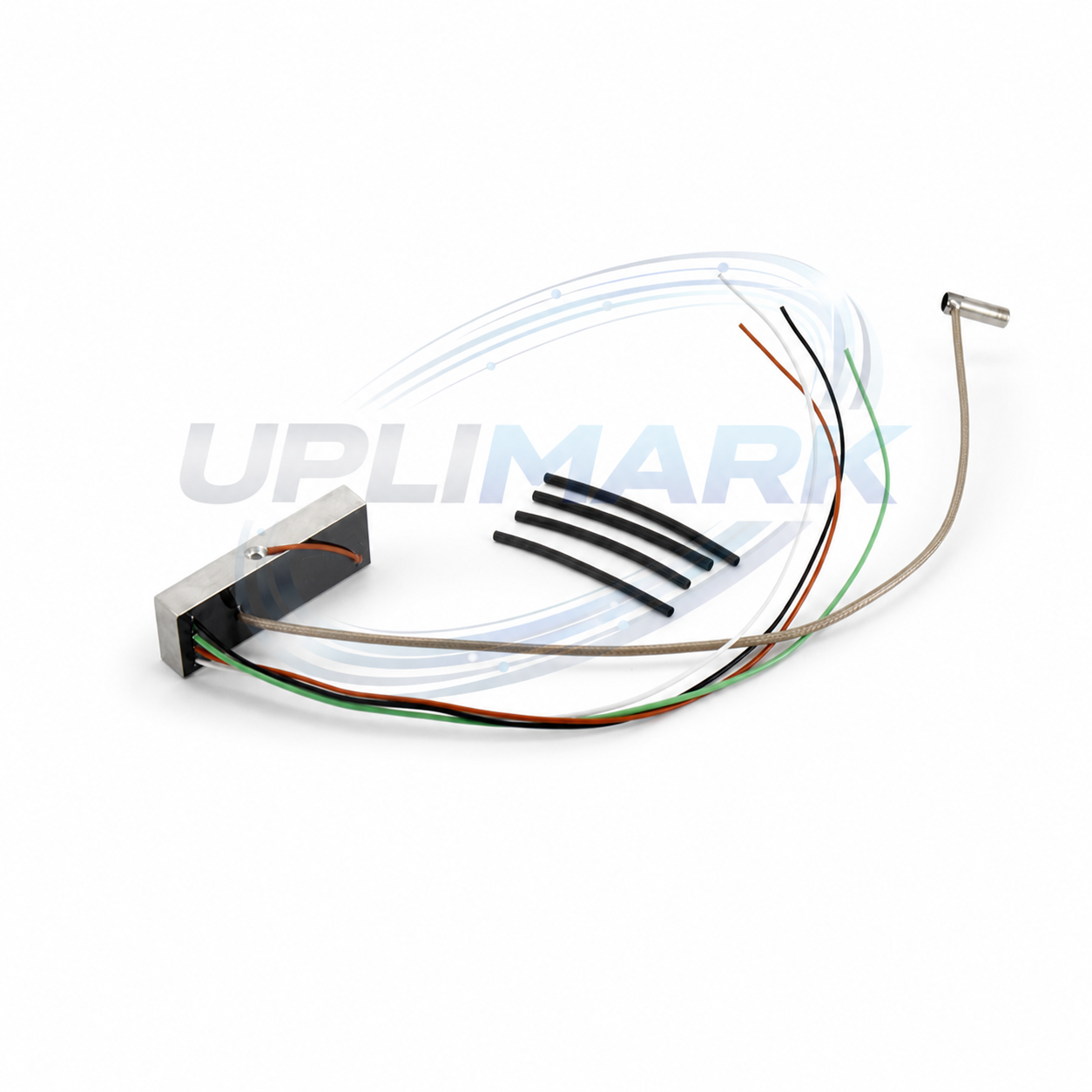

• Included items: One source-matched phase-amplifier assembly and four supplied heat-shrink sleeves as shown.
• Reference status: Confirm by UPLIMARK model, product photographs, dimensions or an approved sample

Image status: An exact owned high-resolution photograph was transformed into a clean branded ecommerce view. Product geometry, wiring and included pieces were structure-reviewed; unverified identifiers were excluded.

Application

Use for professional maintenance, troubleshooting, repair or replacement in a compatible continuous inkjet coding system.

How Do I Confirm Compatibility?

Confirm the printer and printhead revision, wire count and colors, connector and pinout, cable lengths, module dimensions, mounting hole and electrical specification before ordering.

Packaging and Lead Time

Contact UPLIMARK for current stock, packaging, exact included items, supply condition and lead time. Confirm revision, dimensions, electrical or pressure requirements and installation details before ordering.

Request a Quote

Send the printer model, current part number, clear component photographs, relevant dimensions or connector details and required quantity for compatibility confirmation and a quotation.

Manufacturer names and trademarks are used only to identify equipment compatibility. Unless explicitly stated otherwise, items are supplied as compatible replacements.
