1/4 L Male Elbow Fitting for Citronix CIJ Systems – UPLIMARK UCX-003-1028-001

The UPLIMARK 1/4 L Male Elbow Fitting is an industrial coding spare part for Citronix fluid lines using the matching white 90-degree elbow, large and small male threaded ends and separate hand-tightening nut. It is intended for professional maintenance, repair or component replacement.

What Is the 1/4 L Male Elbow Fitting?

This item is a 1 4 l male elbow fitting identified by UPLIMARK model UCX-003-1028-001.

Technical Details

• UPLIMARK model: UCX-003-1028-001
• Condition: New compatible replacement part unless otherwise confirmed in the quotation
• Compatible equipment or use: Citronix fluid lines using the matching white 90-degree elbow, large and small male threaded ends and separate hand-tightening nut
• Part type: 1 4 l male elbow fitting

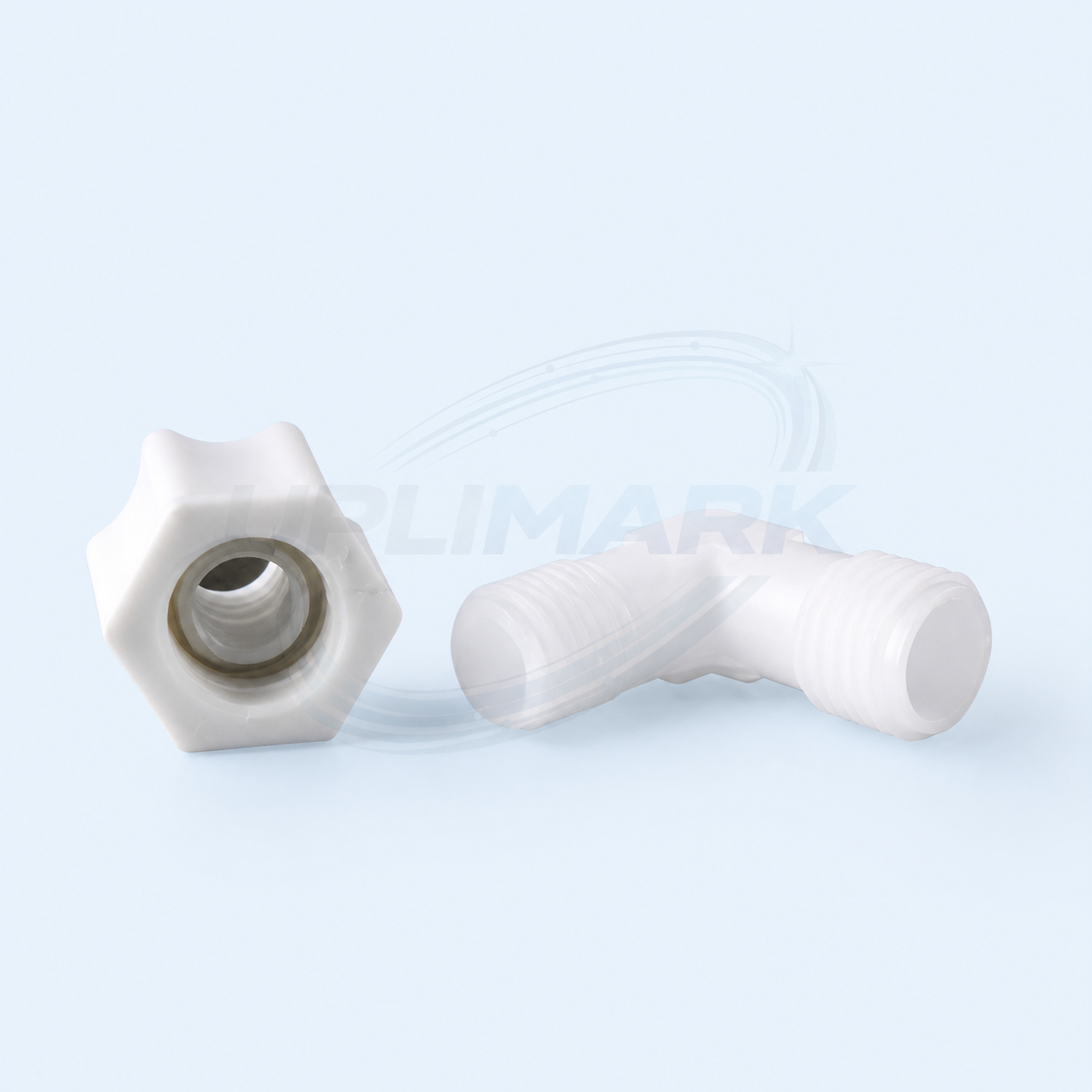

• Included items: One source-matched white 90-degree elbow fitting and one separate six-lobed nut with metal threaded insert as shown.
• Reference status: Confirm by UPLIMARK model, product photographs, dimensions or an approved sample

Image status: An exact owned high-resolution photograph was transformed into a clean branded ecommerce view. Product geometry and included pieces were structure-reviewed; supplier identifiers were excluded.

Application

Use for professional maintenance, troubleshooting, repair or replacement in a compatible continuous inkjet coding system.

How Do I Confirm Compatibility?

Confirm the fluid-system revision, both thread sizes and pitches, port bores, elbow geometry, nut insert, polymer grade, chemical compatibility and included pieces before ordering.

Packaging and Lead Time

Contact UPLIMARK for current stock, packaging, exact included items, supply condition and lead time. Confirm revision, dimensions, electrical or pressure requirements and installation details before ordering.

Request a Quote

Send the printer model, current part number, clear component photographs, relevant dimensions or connector details and required quantity for compatibility confirmation and a quotation.

Manufacturer names and trademarks are used only to identify equipment compatibility. Unless explicitly stated otherwise, items are supplied as compatible replacements.
